SYD1230 5 mW 650 nm Red Laser Diode

SYD1230 5 mW 650 nm Red Laser Diode

SYD1230 5 mW 650 nm Red Laser Diode

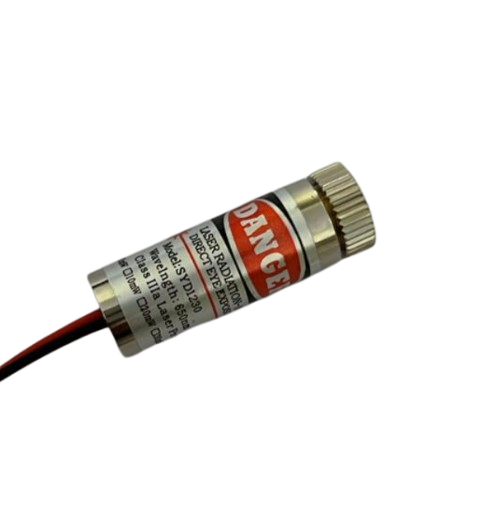

The SYD1230 5 mW 650 nm Red Laser Diode is a compact, high-performance laser module designed for various industrial and DIY applications. Housed in a cylindrical metal case with a 12 mm diameter, SYD1230 Laser Diode emits a bright red beam at a wavelength of 650 nm, making it highly visible to the human eye even in moderately lit environments. With an output power of up to 5 mW, SYD1230 is classified as a Class IIIa laser, offering reliable optical performance while remaining safe for general electronic usage (with precautions). The built-in APC (Automatic Power Control) circuitry stabilizes the laser output, ensuring consistent beam intensity even under fluctuating voltage or temperature conditions.

One of the key features of the SYD1230 is its adjustable focus capability, allowing users to fine-tune the beam to suit specific applications whether projecting a sharp dot, a fine line, or a crosshair using compatible optics. This versatility makes the laser ideal for alignment systems, cutting guides, laser harps, robotics, barcode reading devices, and educational demonstrations.

Whether you're a hobbyist working on a laser pointer project or a professional setting up a precision alignment system, the SYD1230 5 mW 650 nm Red Laser Diode is a reliable and cost-effective component that delivers consistent performance.

DNA solutions, Nashik has various types of Laser Modules and Diodes. Check out our complete collection of Diode's.

Features of SYD1230 5 mW 650 nm Red Laser Diode

• Red laser diode with 650nm wavelength

• Output power: 5mW

• Compact metal housing

• Integrated driver circuit for stable operation

• Two-wire connection

• Easy to mount and integrate

Specifications of SYD1230 5 mW 650 nm Red Laser Diode

• Wavelength: 650nm (Red)

• Output Power: 5mW

• Laser Class: IIIa

• Operating Voltage: 3V to 5V DC

• Operating Current: < 40mA

• Lens: Collimating lens

Applications of SYD1230 5 mW 650 nm Red Laser Diode

• Laser pointers and DIY laser projects

• Educational and scientific demonstrations

• Laser alignment and positioning systems

• Embedded electronics for visual indicators

• Robotics and automation visual markers

Package Includes

      1 x SYD1230 5 mW 650 nm Red Laser Diode
