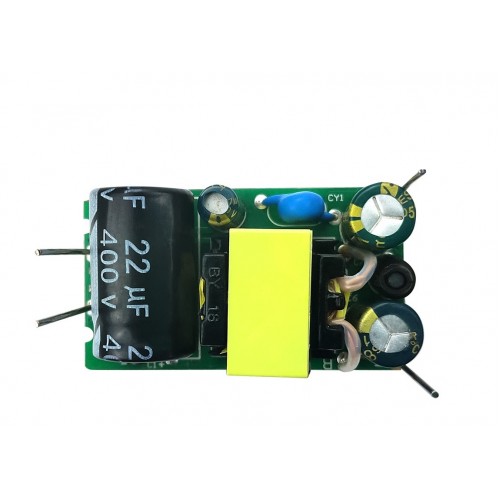

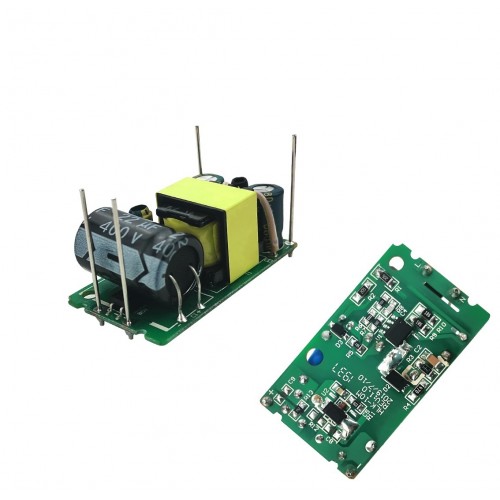

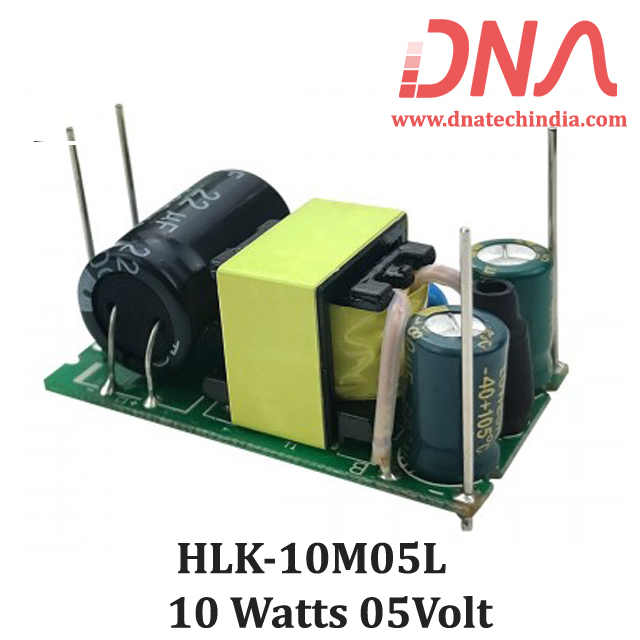

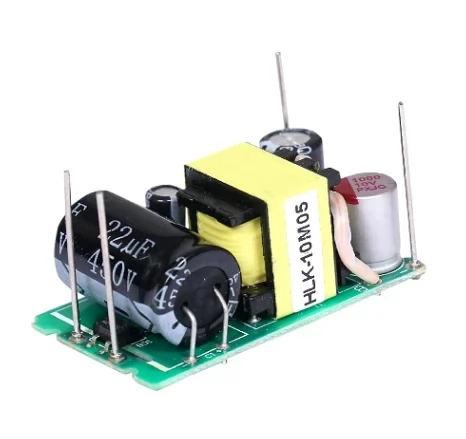

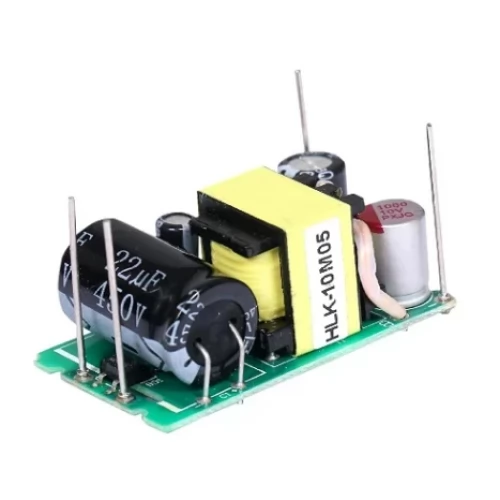

Hi-Link HLK-10M05L 10 W Isolated AC-DC Power Supply Module

  • Stock: 4

    Availability: InStock priceValidUntil: 2026-12-21

  • Brand: Hi-Link
  • SKU: 2598 | DAC994

Availability: InStock priceValidUntil: 2026-12-21

  • Rs. 336.30 (inc GST)
    Rs.285.00 + GST
    Qty :
  • GST InvoiceWith every order
  • Delivery Across IndiaUsually 2–8 days
  • Bulk OrdersAsk for a quote
  • Import & SourcingComponents imported on request

Hi-Link HLK-10M05L 10 W Isolated AC-DC Power Supply Module

Hi-Link HLK-10M05L isolated AC-DC module with 10 W output, 5 V DC output, 2 A long-time output current and 85–264 V AC or 70–350 V DC input.

The Hi-Link HLK-10M05L is an isolated AC-DC power supply module for PCB designs. It converts AC or DC input to a 5 V DC output and delivers up to 10 W. Its wide input range supports use with different power sources in one design.
The module uses an open-frame PCB design and input-to-output isolation. Its encapsulated, heat-conductive material supports a sealed power module design, while natural cooling avoids the need for a fan. Short-circuit protection returns the output to normal after the short is removed.
Use this 5 V power supply module in smart home equipment, automation control, communication equipment and instruments. Its integrated AC or DC conversion can simplify power design in these systems.
Find Hi-Link power modules for your next design at DNA. Browse our Hi-Link Power Supply Module range for options to suit electronic projects and equipment. Check other Hi-Link Power Supply Module that we have in stock
If you cannot find the part you need, contact DNA for import support. We help Indian electronics buyers with retail and bulk orders, including Development boards, Capacitors and Power Supply products. Contact Us

Features of Hi-Link HLK-10M05L 10 W Isolated AC-DC Power Supply Module

  • Converts AC or DC input to a DC output
  • Input-to-output isolation
  • Automatic return to normal operation after a short circuit is removed
  • Encapsulated with waterproof, heat-conductive material
  • Natural cooling

Specifications of Hi-Link HLK-10M05L 10 W Isolated AC-DC Power Supply Module

  • Rated output power: 10 W
  • Output voltage: 5 V DC (5 ±0.1 V no-load)
  • Long-time maximum output current: ≥2000 mA
  • Input voltage: 85–264 V AC or 70–350 V DC
  • Output ripple and noise: ≤70 mVp-p at rated input and full output load
  • Operating temperature: −25 to +60 °C
  • Dimensions: 44.5 × 25.4 × 20 mm

Applications of Hi-Link HLK-10M05L 10 W Isolated AC-DC Power Supply Module

  • Smart home equipment
  • Automation control
  • Communication equipment
  • Instruments

Related Links for Hi-Link HLK-10M05L 10 W Isolated AC-DC Power Supply Module

Package Includes

  • 1 X Hi-Link HLK-10M05L 10 W Isolated AC-DC Power Supply Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
