Wall Mount PIR Motion Switch 180 Degree 230 Volts

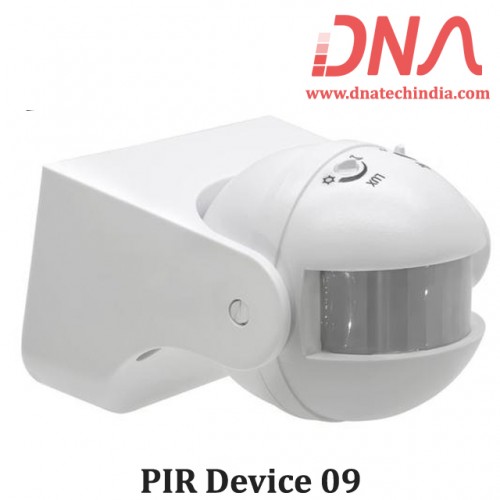

DNA-09 180° Wall-Mount PIR Motion Switch with Ambient light sensing

This is an 180° Wall-Mount PIR Motion Switch with LUX adjustment as well as Time adjustment.

The DNA-09 Series wall mounting PIR sensor module can be used with lamps, incandescent lamps (bulbs), old-fashioned fluorescent lamps, electronic fluorescent ring lamps, spotlights, transformers, small electrical appliances, and other all other appliance.

DNA-09 wall mounting PIR sensor is good energy saving solution with easy installation. DNA-09 PIR Motion sensor have onboard adjustable Ambient light sensor so the lights can be turned ON only during the night time there by saving energy during day. You can have Delay adjustment from 10 Seconds - 7 Minutes and also has Adjustable Lux so turn on the lights only during the night not day.

Using the automatic control product of infrared technology,when people walk into the sensor range,and the sensor can detect the spectral change of the human body infrared ray,during this time,the switch will connect the load automatically until the person leaves the sensor range. Through the photosensitive control , it will not turn on the lights in the daytime or light environment, but also can be adjusted in any lighting environment sensing lights.

DNA Solutions is an Electronic Components Shop dealing in various types of Electronic Components and Automation products. Check our complete list of Automation products.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of DNA-09 Wall Mount PIR Motion Sensor

  • Power Source : 220-240 V/AC
  • Detection Range : 180°
  • Power Frequency : 50/60Hz
  • Detection Distance : 12m max(<24℃)
  • Ambient Light : <3-2000LUX (adjustable)
  • Working Temperature : -20~+40℃
  • Time Delay : Min.10sec±3sec
  • Working Humidity : <93%RH
  • Max. : 7min±2min
  • Power ConsumpƟon : approx. 0.5W
  • Rated Load : Max.1200 Watt
  • 300W(energy-saving lamp)
  • Detection Moving Speed : 0.6-1.5m/s



Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
