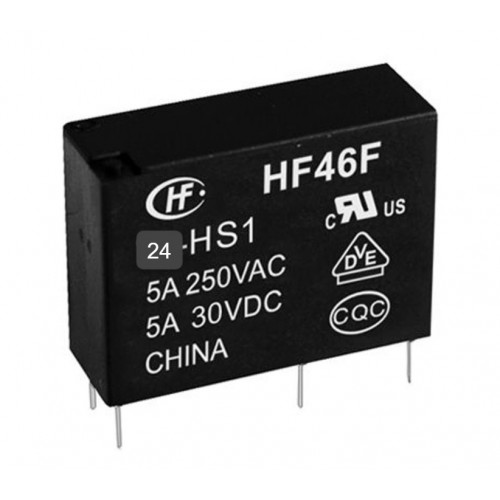

Product Images are shown for illustrative purposes only and may differ from actual product.

Hongfa HF46F-G/24-HS1T Single-Pole Normally Open Relay

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Hongfa
  • SKU: 9974 | DAI766

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 57.82 (inc GST)
    Rs.49.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF46F-G/24-HS1T Single-Pole Normally Open Relay

HF46F-G/24-HS1T is a single-pole normally open relay with a 24 VDC coil, PCB termination and up to 10 A contact rating for resistive loads.

The Hongfa HF46F-G/24-HS1T is a 24 VDC coil relay with a single-pole, normally open contact. It switches electrical loads and supports contact ratings up to 10 A for resistive loads. Its AgSnO2 contacts provide the contact material used in this subminiature intermediate power relay.
The PCB-mount relay has a plastic-sealed body and a Class F insulation system. Its compact design helps engineers add a switching function to a board without using a larger relay. The relay uses a 1 Form A contact arrangement, so the contact stays open when the coil is not energised and closes when the coil operates.
DNA stocks Hongfa Relay products for electronics design and repair needs. Browse Hongfa parts at DNA and compare options for your build. Check other Hongfa Relay that we have in stock
If you cannot find a part, contact DNA. We support imports and retail or bulk orders across India. You can also ask about sensors, crystals, sensor modules, DC to DC converter modules, Nextion displays or programmers. Contact Us

Features of Hongfa HF46F-G/24-HS1T Single-Pole Normally Open Relay

  • Single-pole, normally open switching
  • AgSnO2 contact material
  • PCB termination for board mounting
  • Plastic-sealed construction
  • Class F insulation system

Specifications of Hongfa HF46F-G/24-HS1T Single-Pole Normally Open Relay

  • Nominal coil voltage: 24 VDC
  • Contact rating: 7 A or 10 A at 250 VAC / 30 VDC for resistive loads
  • Maximum switching voltage: 277 VAC / 30 VDC
  • Maximum switching power: 2770 VA / 300 W
  • Ambient temperature: -40 °C to 85 °C
  • Dielectric strength: 4000 VAC for 1 min between coil and contacts
  • Outline dimensions: 20.5 mm × 15.3 mm × 7.0 mm

Related Links for Hongfa HF46F-G/24-HS1T Single-Pole Normally Open Relay

Package Includes

  • 1 X Hongfa HF46F-G/24-HS1T Single-Pole Normally Open Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
