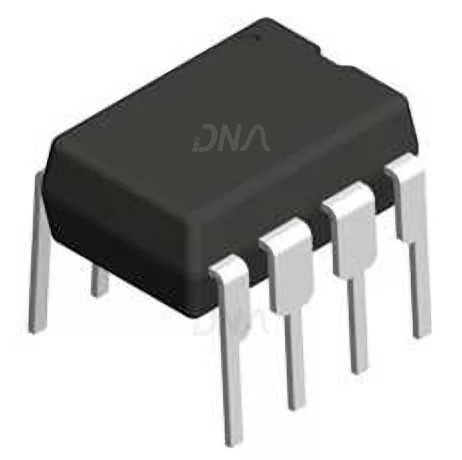

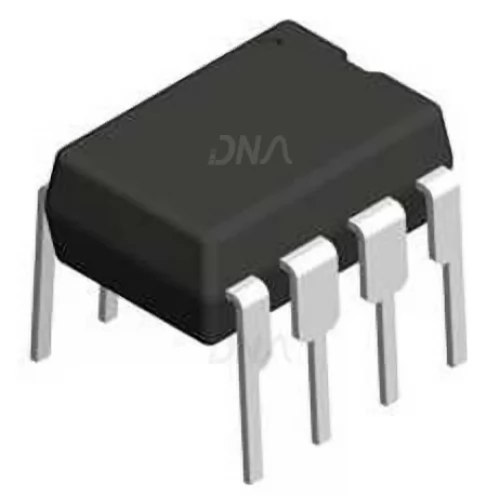

IL34063AN DC to DC Convertor

Write a review | 0 reviews

Stock: 65
Availability: InStock priceValidUntil: 2026-10-02
SKU: 577 | DAA475

Rs. 17.70 (inc GST)
Rs.15.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

IL34063AN DC to DC Convertor

The IL34063A is a monolithic control circuit containing the primary functions required for DC-to-DC converters.

These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step-Down and Step Up and Voltage-Inverting applications with a minimum number of external components.

Features of IL34063AN DC to DC Convertor

Operation from 3.0 V to 40 V Input
Low Standby Current
Current Limiting
Output Switch Current to 1.5 A
Output Voltage Adjustable
Frequency Operation to 100 kHz
Precision 2% Reference
Power Supply Voltage VCC 40 Vdc
Comparator Input Voltage Range VIR -0.3 to +40 Vdc
Switch Collector Voltage VC(switch) 40 Vdc
Switch Emitter Voltage (Vpin 1 = 40 V) VE(switch) 40 Vdc
Switch Collector to Emitter Voltage VCE(switch) 40 Vdc
Driver Collector Voltage I C(driver) 40 Vdc
Driver Collector Current I C(driver) 100 mA
Switch Current I SW 1.5 A

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
