Infineon IR2101STRPBF High- and Low-Side Gate Driver

Infineon IR2101STRPBF High- and Low-Side Gate Driver

IR2101STRPBF dual-channel high- and low-side gate driver with 10 V to 20 V supplies and up to 600 V high-side offset.

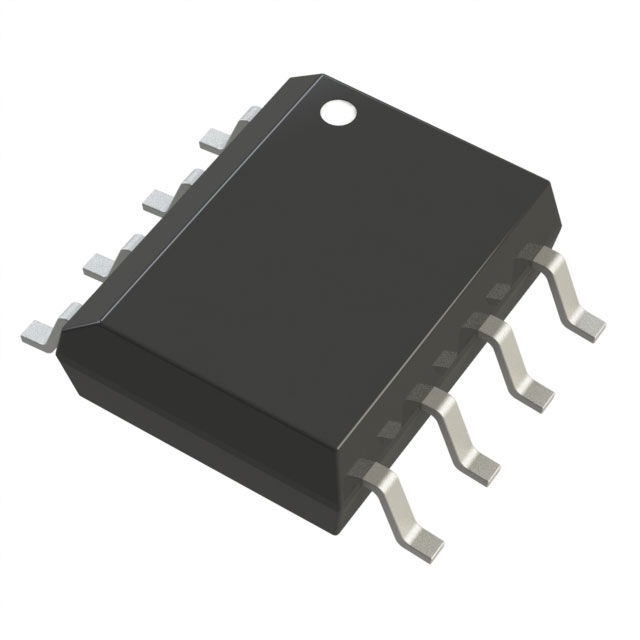

Infineon IR2101STRPBF is a dual-channel high- and low-side gate driver for power MOSFETs and IGBTs. Its floating high-side channel supports a supply offset up to 600 V, while the gate-drive supplies operate from 10 V to 20 V. This suits switching stages that need separate high-side and low-side control.

The driver accepts 3.3 V, 5 V and 15 V logic inputs, so it can connect to common control circuits. Matched propagation delay helps keep both output channels aligned. Undervoltage lockout and tolerance to negative transients and dV/dt support stable gate control. A high-pulse-current buffer helps reduce cross-conduction in the driver.

Use this dual-channel gate driver to control an N-channel MOSFET or IGBT in a high-side configuration. The 600 V high-side offset and 10 V to 20 V gate-drive supply suit power conversion designs that need both output channels.

Shop Infineon gate drivers and related parts at DNA, with support for electronics design and sourcing across the MOSFET & IGBT category. Check other MOSFET & IGBT that we have in stock

If you cannot find the part you need, contact DNA for help. We support Indian electronics buyers with import options and retail or bulk orders. Ask us about related MOSFETs, diodes, resistors and DC to DC Converter ICs. Contact Us

Features of Infineon IR2101STRPBF High- and Low-Side Gate Driver

• Independent high-side and low-side output channels
• Floating high-side channel supports bootstrap operation
• Drives power MOSFETs and IGBTs
• Undervoltage lockout supports controlled gate operation
• Tolerant to negative transients and dV/dt
• High-pulse-current buffer helps reduce driver cross-conduction

Specifications of Infineon IR2101STRPBF High- and Low-Side Gate Driver

• Low-side and logic supply voltage (VCC): 10 V to 20 V
• Floating supply voltage (VBS): 10 V to 20 V
• High-side supply offset voltage: Up to 600 V, with logic operation for VS from -5 V to +600 V
• Logic input compatibility: 3.3 V, 5 V and 15 V logic
• Turn-on propagation delay: 160 ns typical, 220 ns maximum at VBIAS 15 V, CL 1000 pF, TA 25°C and VS 0 V
• Turn-off propagation delay: 150 ns typical, 220 ns maximum at VBIAS 15 V, CL 1000 pF, TA 25°C and VS 600 V
• Package: 8-lead SOIC
• Ambient operating temperature: -40°C to +125°C

Applications of Infineon IR2101STRPBF High- and Low-Side Gate Driver

• Driving an N-channel power MOSFET or IGBT in a high-side configuration

Related Links for Infineon IR2101STRPBF High- and Low-Side Gate Driver

• Infineon IR2101STRPBF High- and Low-Side Gate Driver Datasheet

• Other Products from MOSFET & IGBT Category

Package Includes

• 1 X Infineon IR2101STRPBF High- and Low-Side Gate Driver
