Product Images are shown for illustrative purposes only and may differ from actual product.

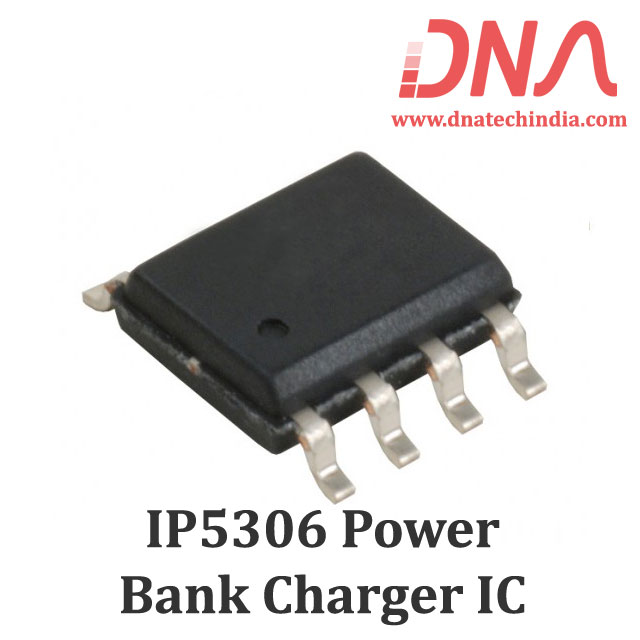

IP5306 Power Bank Charger IC
- Stock: 83
- SKU: 2638 | DAE058
-
Rs. 63.72 (inc GST)
Rs.54.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
IP5306 Power Bank Charger IC
Fully Integrated Power Bank System On Chip with 2.1 Ampere charger, 2.4 Ampere discharger
The IP5306 is a multi-function power management SOC with an integrated boost converter, lithium battery charge management, and battery power indication, providing a complete power solution for mobile power supplies.
The high integration and rich features of the IP5306 make it possible to use only a few external components in the application and to effectively reduce the overall solution size and BOM cost.
IP5306 Power Bank Charger IC only needs a single inductor to realize step-down and step-up which provides 2.4A output current. It can switch to standby mode at light load automatically IP5306’s synchronous switching charger provides 2A charging current. Its efficiency is up to 91%. It regulates the charging current by IC temperature and input voltage.
IP5306 Lithium Ion charger IC integrates voltage based fuel gauge indication of 1/2/3/4 LEDs and flashlight function. IP5306 is available in ESOP8.
The high integration and rich features of the IP5306 make it possible to use only a few external components in the application and to effectively reduce the overall solution size and BOM cost.
IP5306 Power Bank Charger IC only needs a single inductor to realize step-down and step-up which provides 2.4A output current. It can switch to standby mode at light load automatically IP5306’s synchronous switching charger provides 2A charging current. Its efficiency is up to 91%. It regulates the charging current by IC temperature and input voltage.
IP5306 Lithium Ion charger IC integrates voltage based fuel gauge indication of 1/2/3/4 LEDs and flashlight function. IP5306 is available in ESOP8.
Features of IP5306 Power Bank Charger IC
- Synchronous switch charge and discharge
- 2.4 Ampere Synchronous Boost Converter, 2.1 Ampere Synchronous Switch Charge
- Boost efficiency up to 92%
- Up to 91% charge efficiency
Applications of IP5306 Power Bank Charger IC
- Mobile Power / Charging Po
- Mobile phones, tablet PCs and other portable devices
Related Video
Related Links
Package Includes
1 x IP5306 Power Bank Charger IC
Frequently Asked Questions
Do you provide a GST bills?
What is your return / replacement policy?
Do you ship all over India?
I forgot to add GST number at time of placing order, but I need GST Invoice in my firms name?
What details should I send for a bulk quote?
Are components original / new?
