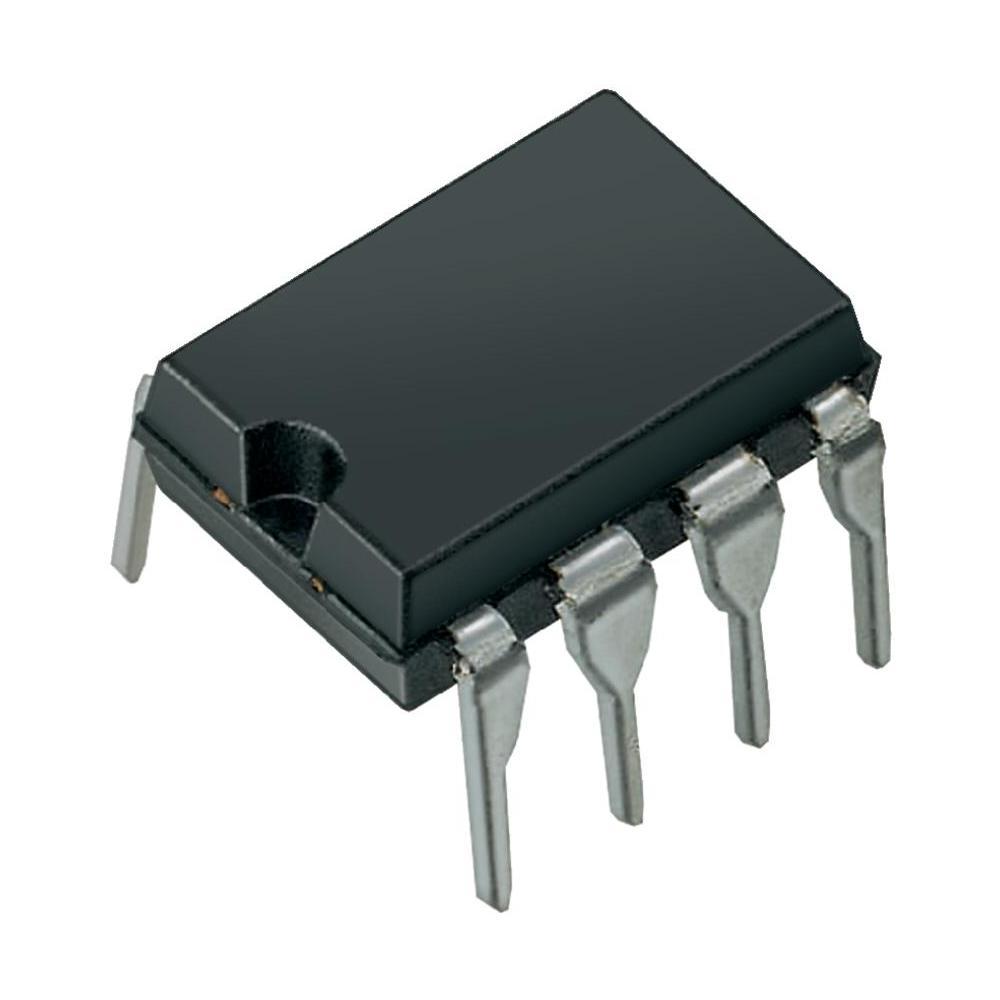

LM311 Comparator

The LM311 is single high-speed voltage comparators.

These devices are designed to operate from a wide range of power-supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC–. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.

Feature of LM311P Differantial Comparator

• Fast Response Times

• Strobe Capability

• Maximum Input Bias Current . . . 300 nA

• Maximum Input Offset Current . . . 70 nA

• Can Operate From Single 5-V Supply

• Supply voltage : VCC+ to VCC– 36 V

• Voltage from emitter output to VCC– 30V

• Voltage from collector output to VCC– 40V

• Available in Q-Temp Automotive

• High-Reliability Automotive Applications

• Configuration Control/Print Support

• Qualification to Automotive Standards
