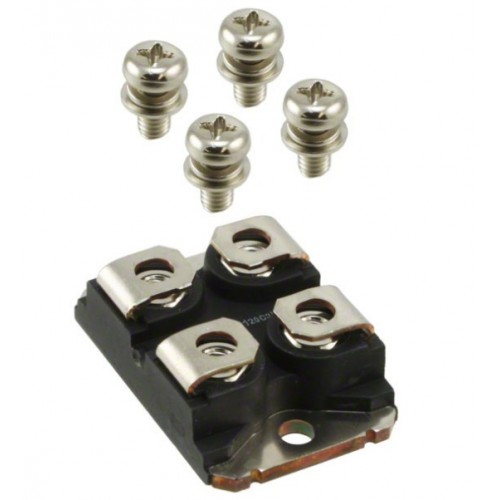

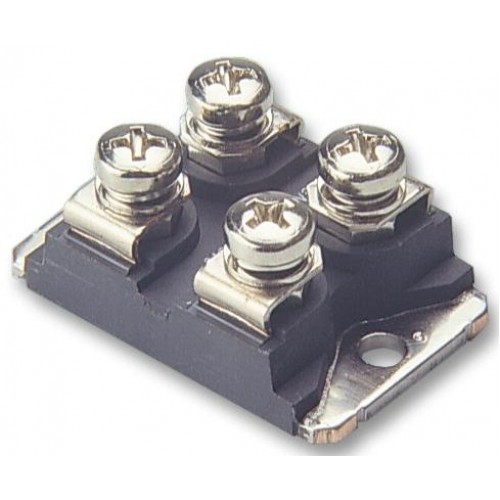

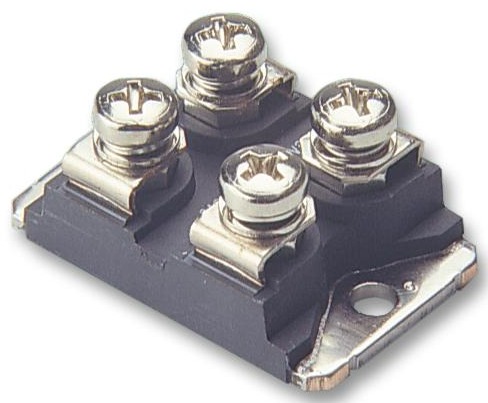

Product Images are shown for illustrative purposes only and may differ from actual product.

IXYN100N120C3H1 IGBT MODULE

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-21

  • Brand: IXYS
  • SKU: 9007 | DAI080

Availability: NotInStock priceValidUntil: 2026-12-21

  • Rs. 4,410.99 (inc GST)
    Rs.3,738.13 + GST
    Qty :
  • GST InvoiceWith every order
  • Delivery Across IndiaUsually 2–8 days
  • Bulk OrdersAsk for a quote
  • Import & SourcingComponents imported on request

IXYN100N120C3H1 IGBT Module

IXYN100N120C3H1 IGBT Module offers fast switching, low-loss power conversion, and high thermal performance in a rugged package.

The IXYN100N120C3H1 IGBT Module is designed for high-voltage power conversion with excellent thermal performance. It features low VCE(sat) for energy efficiency and fast switching capabilities that reduce losses. This module is ideal for applications like industrial motor drives and power inverters. Its rugged design ensures reliability in demanding environments.
With a collector-emitter voltage of 1200V and a collector current of 100A, the IXYN100N120C3H1 IGBT Module operates efficiently in various high-voltage applications. The integrated anti-parallel fast recovery diode enhances its performance in renewable energy systems and HVAC controls. Experience outstanding efficiency and long-term reliability with this module.
Available at DNA Solutions in Nashik, the IGBT Module IXYN100N120C3H1 can be purchased online or at our local shop. Explore our complete range of IGBT Modules for all your electronic component needs.
Explore the reliability of IGBT, Thyristor & Diode Modules at DNA Solutions. The IGBT Module IXYN100N120C3H1 is perfect for high-voltage power applications. Don't forget to check other IGBT, Thyristor & Diode Modules that we have in stock.
At DNA, we cater to Indian electronics buyers. If you can't find specific components, we can import them for you. We support both retail and bulk orders. Explore related items like Connectors, DC to DC Converter Modules, Digital ICs, and more. Contact Us.

Features of IXYN100N120C3H1 IGBT Module

  • Low VCE(sat) for high efficiency
  • Fast switching performance with minimal losses
  • High input impedance and voltage isolation
  • Compact and rugged insulated package
  • Integrated anti-parallel fast recovery diode
  • Optimized for high-voltage switching applications

Specifications of IXYN100N120C3H1 IGBT Module

  • Collector-Emitter Voltage (VCES): 1200V
  • Collector Current (IC): 100A
  • Power Dissipation: 520W
  • Gate Threshold Voltage: 4.5V to 6.5V
  • Package Type: ISOPLUS i4-PAC
  • Operating Temperature: -40°C to +150°C

Applications of IXYN100N120C3H1 IGBT Module

  • Industrial Motor Drives
  • Power Inverters and UPS Systems
  • Switch Mode Power Supplies (SMPS)
  • Renewable Energy Systems
  • HVAC and Compressor Control

Related Links for IXYN100N120C3H1 IGBT Module

Package Includes

  • 1 X IXYN100N120C3H1 IGBT Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
