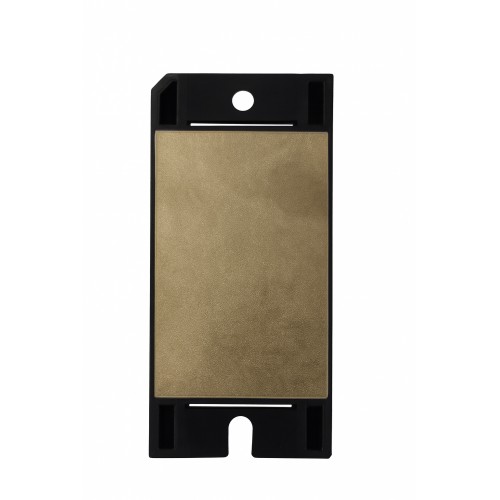

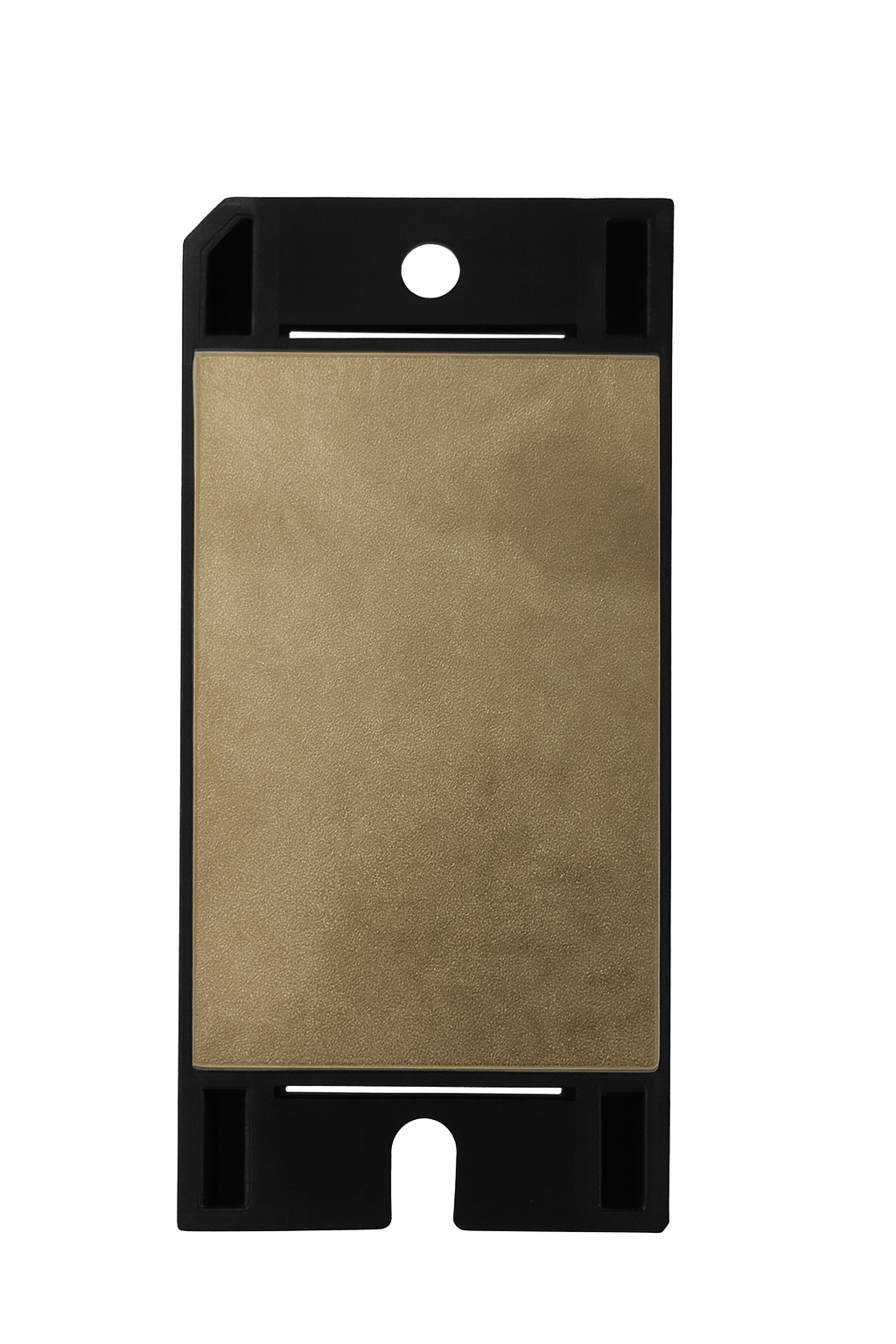

IXYS VUB120-16NOX Bridge Rectifier Module

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: IXYS
  • SKU: 10449 | DAH755

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 11,396.90 (inc GST)
    Rs.9,658.39 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

IXYS VUB120-16NOX Three-Phase Rectifier Bridge and Brake Module

IXYS VUB120-16NOX combines a three-phase rectifier bridge, brake IGBT and brake diode, with 1600 V rectifier blocking voltage and 1200 V IGBT rating.

The IXYS VUB120-16NOX is a power module that combines a three-phase rectifier bridge with a brake IGBT and brake diode. It supports three-phase rectification with a brake unit for drive inverters. The rectifier has a 1600 V maximum repetitive reverse blocking voltage, and the brake IGBT has a 1200 V collector-emitter rating.
Its integrated rectifier and brake unit brings key power functions into one module. The X2PT design and planar-passivated chips support its power switching design. A DCB ceramic base plate with an isolated backside adds electrical separation from the mounting surface, while soldering pins support PCB mounting.
Use this drive inverter power module where a three-phase rectifier and brake unit are needed together. Its combined functions can simplify power-stage integration in drive inverter designs.
DNA stocks IXYS products for buyers seeking IGBT, Thyristor & Diode Modules. Contact our team for help with the VUB120-16NOX or to discuss your module requirements. Check other IGBT, Thyristor & Diode Modules that we have in stock
For Indian electronics buyers, DNA can help source hard-to-find parts and provide import support for retail and bulk orders. Contact us for this module or related Capacitor, DC to DC Converter IC, Hongfa Relay, Analog IC, Nextion Display or MOSFET products. Contact Us

Features of IXYS VUB120-16NOX Three-Phase Rectifier Bridge and Brake Module

  • Combines a three-phase rectifier bridge and brake unit in one module
  • Uses X2PT design with planar-passivated chips
  • DCB ceramic base plate has an isolated backside
  • Soldering pins support PCB mounting
  • Design characteristics include low gate charge, low EMI and square RBSOA

Specifications of IXYS VUB120-16NOX Three-Phase Rectifier Bridge and Brake Module

  • Rectifier maximum repetitive reverse blocking voltage (VRRM): 1600 V at TVJ = 25°C
  • Rectifier bridge output current (IDAV): 180 A at TC = 90°C and TVJ = 150°C, rectangular waveform, duty cycle 1/3
  • Brake IGBT collector-emitter voltage (VCES): 1200 V at TVJ = 25°C
  • Brake IGBT collector current: 180 A at TC = 25°C
  • Operating temperature: -40°C to 125°C
  • Isolation voltage: 3600 V for 1 second or 3000 V for 1 minute at 50/60 Hz RMS, ISOL ≤ 1 mA
  • Package: V2-Pack, 17 mm height, DCB ceramic base plate

Applications of IXYS VUB120-16NOX Three-Phase Rectifier Bridge and Brake Module

  • Three-phase rectification with a brake unit for drive inverters

Related Links for IXYS VUB120-16NOX Three-Phase Rectifier Bridge and Brake Module

Package Includes

  • 1 X IXYS VUB120-16NOX Three-Phase Rectifier Bridge and Brake Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
