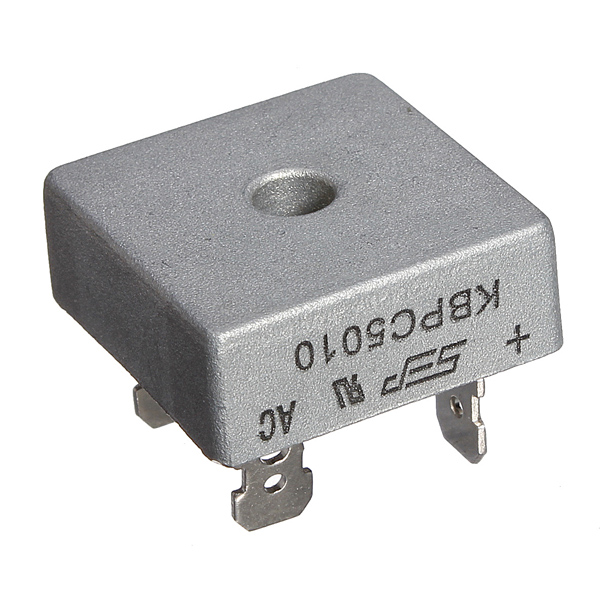

KBPC5010 Bridge Rectifier

KBPC-5010 is a 50 Ampere single phase Full wave Bridge rectifier module.

Feature of KBPC5010  Bridge Rectifier

• High case dielectric strength

• High surge current capability

• High reliability

• High efficiency

• Low reverse current

• Low forward voltage drop

• Pb / RoHS Free

• Maximum Average Forward Current Tc = 55°C I F(AV) 50 A

• Maximum Forward Voltage per Diode at IF=25 A VF 1.1 V

• Maximum DC Reverse Current Ta = 25 °C I R 10 μA

• Maximum Recurrent Peak Reverse Voltage VRRM 1000V

• Maximum RMS Voltage VRMS 700V

• Maximum DC Blocking Voltage VDC 1000V

Mechanical Feature of KBPC5010  Bridge Rectifier

• Case : Metal Case

• Epoxy : UL94V-0 rate flame retardant

• Terminals : plated .25" (6.35 mm). Faston

• Polarity : Polarity symbols marked on case

• Mounting position : Bolt down on heat-sink with silicon thermal compound between bridge and mounting surface for maximum heat transfer efficiency.

• Weight : 17.1 grams
