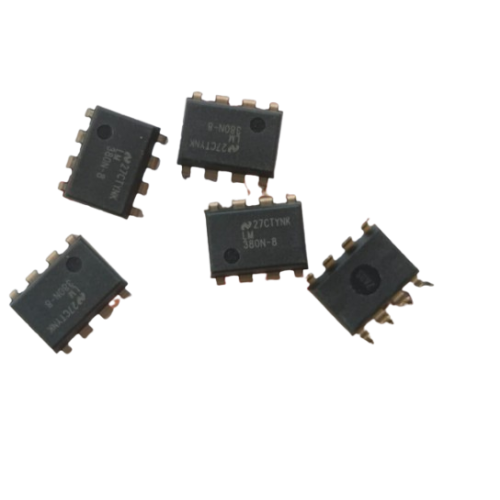

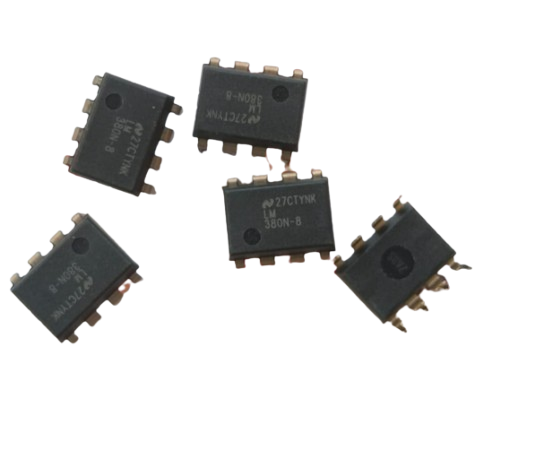

• LM380N-8/NOPB Audio Power Amplifier DIP IC

Product Images are shown for illustrative purposes only and may differ from actual product.

LM380N-8/NOPB Audio Power Amplifier DIP IC

  • Stock: Out Of Stock
  • SKU: 8771 | DAI053
  • Rs. 261.41 (inc GST)
    Rs.221.54 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM380N-8/NOPB Audio Power Amplifier DIP IC

LM380N-8/NOPB Audio Power Amplifier DIP IC

The LM380N-8/NOPB is a power audio amplifier that is capable of driving a speaker or other audio output devices. It is designed in a DIP-8 (Dual In-line Package) form factor, which is widely used for through-hole mounting on a PCB (Printed Circuit Board). This IC integrates all the necessary components for audio amplification, including preamplifiers, power transistors, and feedback networks, making it highly efficient and cost-effective for basic audio applications.

DNA solutions, Nashik has various types of Amplifier IC's. Check out our complete collection of Amplifier IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LM380N-8/NOPB Audio Power Amplifier DIP IC

  • Wide Supply Voltage Range: The IC operates with a supply voltage range between 14V and 36V, making it suitable for a variety of power supply configurations
  • Compact DIP-8 Package: The IC comes in an 8-pin dual in-line package, which is easy to integrate into various designs
  • Short Circuit Protection: It has built-in short-circuit protection to safeguard the IC from damage due to incorrect wiring or power surges

Specifications of LM380N-8/NOPB Audio Power Amplifier DIP IC

  • Operating Voltage Range: 14V to 36V
  • Output Power: 14W at ±18V, 8Ω load
  • Total Harmonic Distortion (THD): Less than 0.1% at 1W into 8Ω
  • Supply Current (Quiescent): Typically around 10mA
  • Slew Rate: 0.5V/μs
  • Package: 8-pin DIP (Dual In-line Package)
  • Operating Temperature Range: -40°C to +85°C

Applications of LM380N-8/NOPB Audio Power Amplifier DIP IC

  • Consumer Audio Equipment
  • Portable Audio Systems
  • Toys and Educational Projects
  • Alarm and Paging Systems

    Package Includes

          1 x LM380N-8/NOPB Audio Power Amplifier DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
