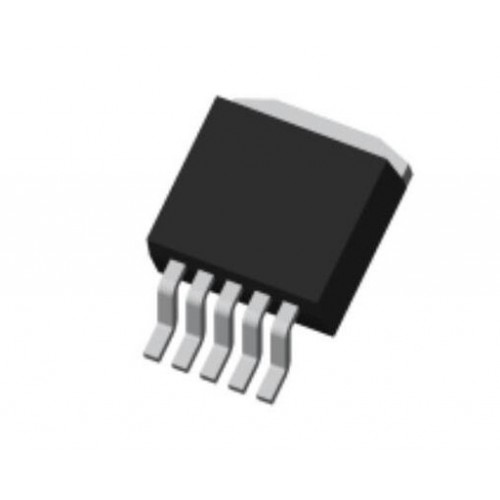

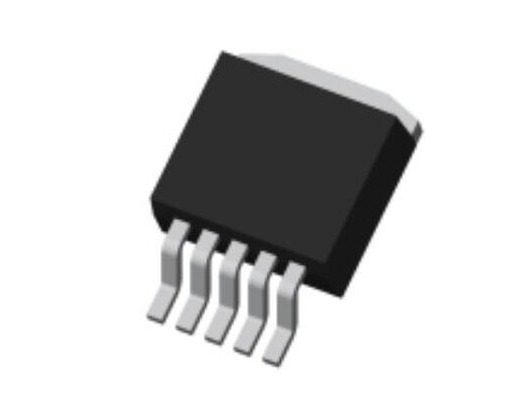

HTC LM39302 Linear Voltage Regulator IC (TO263 5)

LM39302 Linear Voltage Regulator IC

LM39302 3A low-dropout voltage regulator IC with thermal shutdown and current limiting features.

The LM39302 Linear Voltage Regulator IC is a robust solution for power management in demanding applications. It offers a maximum output current of 3A with a typical dropout voltage of just 0.5V. This makes it suitable for systems where power efficiency is essential. The adjustable output voltage ranges from 1.2V to 5V, allowing flexibility for various electronic designs.

Designed for reliability, the LM39302 includes features such as thermal shutdown and current limiting, ensuring safe operation across different environments. It is ideal for powering microcontrollers, FPGAs, and other devices that require stable voltage levels. The device is available in a TO263-5 package, providing ease of integration into your projects.

Explore the LM39302 Linear Voltage Regulator IC for applications in industrial automation, telecommunications, and consumer electronics. Its high precision and low dropout characteristics make it a preferred choice for engineers focusing on efficient circuit design.

At DNA, we offer quality products like the LM39302 from trusted manufacturers in the Voltage Regulators category. Explore our range of Voltage Regulators to find solutions tailored to your needs. Check other Voltage Regulators that we have in stock.

If you're searching for specific electronic components in India, reach out to us. We can help with imports and provide support for both retail and bulk orders. Check out our related items like Programmer, Development boards, Inductor, and Sensor. Contact Us.

Features of LM39302 Linear Voltage Regulator IC

• Low dropout voltage of 0.5V at 3A
• Supports output current up to 3A
• Adjustable output voltage from 1.2V to 5V
• Includes thermal shutdown and current limiting
• High precision voltage reference

Specification of LM39302 Linear Voltage Regulator IC

• Input Voltage Range: 2.5V to 13V
• Output Current: Up to 3A
• Dropout Voltage: Typically 0.5V at 3A
• Output Voltage: Adjustable or fixed (1.2V to 5V)
• Line Regulation: ±0.2% (typical)
• Load Regulation: ±0.3% (typical)

Applications of LM39302 Linear Voltage Regulator IC

• Power Supplies
• Microcontroller and FPGA Powering
• Industrial Automation
• Telecommunications
• Consumer Electronics

Related Links for LM39302 Linear Voltage Regulator IC

• Other Products from Voltage Regulators Category

Package Includes

• 1 X LM39302 Linear Voltage Regulator IC
