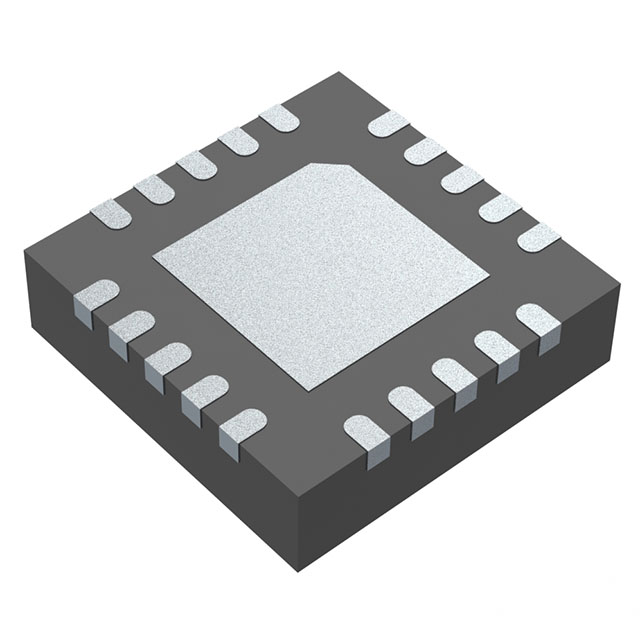

LP5012RUKR LED Lighting Driver SMD IC

LP5012RUKR LED Lighting Driver SMD IC

LP5012RUKR LED Driver IC for RGB control, 12 channels, 35 mA output.

The LP5012RUKR LED Lighting Driver SMD IC is engineered for smart lighting solutions. It offers 12 constant-current channels with 12-bit PWM dimming for accurate color and brightness control. Operating between 2.7V and 5.5V, this IC excels in applications like smart speakers and home automation. The I²C interface allows easy integration and control across multiple LEDs.

This LED Lighting Driver IC provides high-frequency PWM at 29 kHz, ensuring flicker-free operation. With support for up to 35 mA per channel, it enables independent color mixing and synchronized effects. Its compact WQFN-20 package makes it suitable for various electronic devices, including video doorbells and smoke detectors.

Explore the capabilities of the LP5012RUKR LED Lighting Driver SMD IC for your next project. Its advanced features make it perfect for ambient lighting and gaming peripherals. Enhance your designs with this reliable component that ensures smooth color transitions and optimal performance.

At DNA, we offer a wide range of electronic components from Texas Instruments in the Components & IC's category. Discover how the LP5012RUKR can elevate your projects. Check other Components & IC's that we have in stock.

If you need specific electronic components, reach out to us. We can help you find resistors, inductors, digital ICs, and more. If it's not available, we can also import it for you. Contact Us.

Features of LP5012RUKR LED Lighting Driver SMD IC

• 12 constant-current LED channels
• 12-bit PWM resolution per channel
• High PWM frequency (29 kHz) for flicker-free operation
• I²C interface with 2 address pins
• Output current up to 35 mA per channel
• Independent color mixing and brightness control
• Built-in global control registers for synchronized effect

Specification of LP5012RUKR LED Lighting Driver SMD IC

• Product Category: LED Lighting Driver ICs
• Mounting Style: SMD/SMT
• Package/Case: WQFN-20
• Number of Outputs: 12 Output
• Output Current: 35 mA
• Packaging: Reel
• Topology: Boost

Applications of LP5012RUKR LED Lighting Driver SMD IC

• Smart speaker
• Smart home appliances
• Video doorbell
• Electronic smart lock
• Smoke and heat detector

Package Includes

• 1 X LP5012RUKR LED Lighting Driver SMD IC
