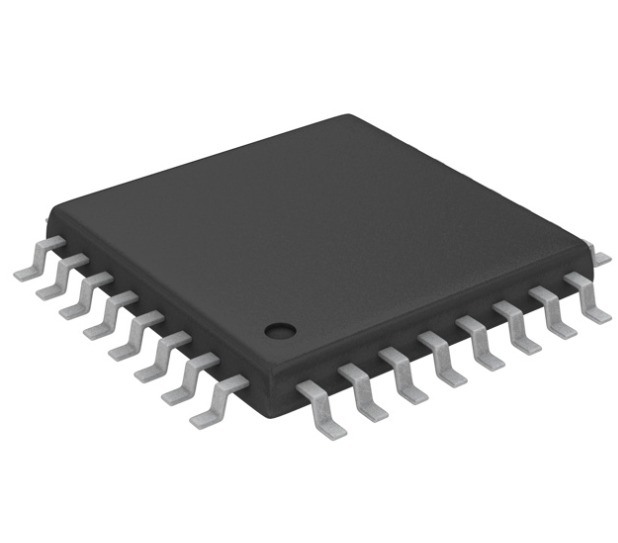

Product Images are shown for illustrative purposes only and may differ from actual product.

MAX3420EECJ+ USB Controller USB 2.0 SPI Interface 32-LQFP SMD IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 8784 | DAI106

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 1,996.03 (inc GST)
    Rs.1,691.55 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MAX3420EECJ+ USB Controller USB 2.0 SPI Interface SMD IC

MAX3420EECJ+ USB Controller for USB 2.0 with SPI Interface, 32-LQFP SMD, 12 Mbps speed.

The MAX3420EECJ+ USB Controller USB 2.0 SPI Interface SMD IC is a full-speed USB peripheral controller designed for seamless integration in embedded systems. This device supports USB 2.0 at 12 Mbps and features an integrated USB transceiver for efficient communication. It allows microcontrollers to connect to USB hosts without needing complex protocol stacks, simplifying device integration.
With a SPI interface capable of up to 26 MHz clock speed, the MAX3420EECJ+ USB Controller is ideal for various applications like industrial control systems, data acquisition systems, and medical devices. It includes internal FIFOs for USB endpoint buffering and supports multiple transfer types, ensuring effective data management.
This USB Controller is perfect for consumer electronics and USB-based communication adapters. Its compact 32-LQFP SMD package makes it suitable for space-constrained environments. Choose the MAX3420EECJ+ for reliable and efficient USB connectivity in your projects.
At DNA, we offer a wide range of Communication IC's from Analog Devices. Explore our selection to find the right solutions for your needs. Check other Communication IC's that we have in stock.
If you are searching for specific electronic components, reach out to us. We can help you find parts like Sensor Modules, Microcontrollers, or IGBTs. If it's not in stock, we can import it for you. Contact Us.

Features of MAX3420EECJ+ USB Controller USB 2.0 SPI Interface SMD IC

  • Full-Speed USB (12 Mbps) peripheral controller
  • SPI Interface (up to 26 MHz clock)
  • Integrated USB transceiver
  • Supports Control, Bulk, and Interrupt transfers
  • Internal FIFOs for USB endpoint buffering
  • Interrupt-Driven Operation

Specification of MAX3420EECJ+ USB Controller USB 2.0 SPI Interface SMD IC

  • USB Specification: USB 2.0 Full-Speed (12 Mbps)
  • Interface Type: SPI
  • Package Type: 32-LQFP
  • Mounting Type: SMD
  • Operating Voltage: 1.71V to 3.6V (I/O), 3.3V internal LDO
  • Max SPI Clock Frequency: 26 MHz

Applications of MAX3420EECJ+ USB Controller USB 2.0 SPI Interface SMD IC

  • Industrial control systems
  • Data acquisition systems
  • Medical devices
  • Consumer electronics
  • USB-based communication adapters

Package Includes

  • 1 X MAX3420EECJ+ USB Controller USB 2.0 SPI Interface SMD IC 32-LQFP SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
