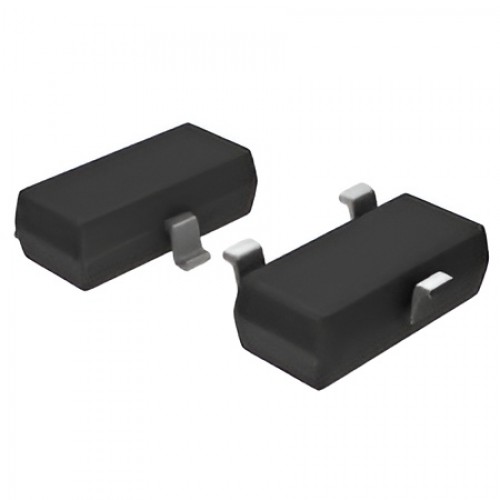

MAX5490GA01000+T Precision Resistor Divider

MAX5490GA01000+T precision resistor divider with 100Kohm resistance, low temperature drift, and high accuracy.

The MAX5490GA01000+T Precision Resistor Divider is designed for applications requiring precise resistance matching and minimal temperature drift. This device features a 100Kohm end-to-end resistance with a low temperature drift of 1ppm/°C, making it ideal for base stations and instrumentation. Its maximum resistor-ratio accuracy is 0.035%, ensuring reliable performance in critical situations.

The MAX5490GA01000+T operates efficiently under a maximum voltage of 80V, handling continuous currents up to 840µA. With a -3dB bandwidth of 3MHz, it supports various applications in automatic test equipment and precision gain setting. Its thermal noise is only 45µVRMS, contributing to its effectiveness in sensitive electronic designs.

This precision resistor divider is essential for professionals seeking quality and reliability in their electronic components. Explore the benefits of the MAX5490GA01000+T for your projects requiring high accuracy and low drift.

Discover the reliability of the MAX5490GA01000+T from DNA, a trusted retailer in the Potentiometer category. Explore our selection of Potentiometers to find the right solution for your needs. Check other "Potentiometer" that we have in stock.

At DNA, we cater to all your electronic needs. If you are looking for specific components, like Hongfa Relays, Development Modules, or Analog ICs, reach out to us. We can import parts not in stock and support both retail and bulk orders. Contact Us.

Features of MAX5490GA01000+T Precision Resistor Divider

• 100Kohm end-to-end resistance
• Low temperature drift of 1ppm/°C
• 0.035% maximum resistor-ratio accuracy
• 80V maximum operating voltage
• 840µA maximum continuous current

Specification of MAX5490GA01000+T Precision Resistor Divider

• 3MHz -3dB bandwidth
• 67.2mW maximum power rating
• 45µVRMS thermal noise
• 35ppm/°C temperature coefficient of resistance
• -25dB current noise

Applications of MAX5490GA01000+T Precision Resistor Divider

• Precision gain setting
• Base station applications
• Instrumentation
• Automatic test equipment
• High accuracy electronic designs

Related Links for MAX5490GA01000+T Precision Resistor Divider

• Other Products from Potentiometer Category

Package Includes

• 1 X MAX5490GA01000+T Precision Resistor Divider
