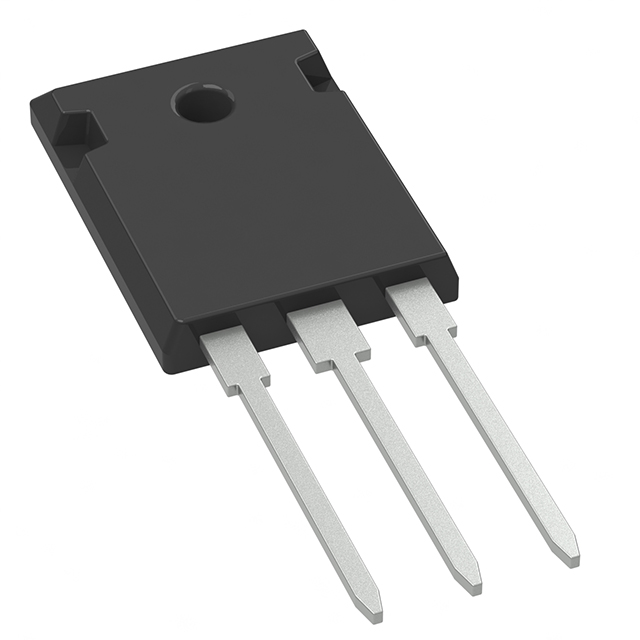

MBR30200PT Schottky Diode (Package-TO247)

MBR30200PT Schottky Diode (Package-TO247)

The MBR30200PT is a high-performance Schottky barrier rectifier designed for high-current and high-speed switching applications. It supports up to 30A average forward current and 200V reverse voltage. With a low forward voltage drop and fast recovery time, it offers excellent efficiency and reduced power loss. The diode features a dual configuration with a common cathode and comes in a robust TO-247 package for through-hole mounting. It has high surge current capability and is ideal for power supplies, inverters, and battery charging circuits. Its guard ring design enhances reliability and ruggedness. Suitable for industrial and automotive use.

DNA solutions, Nashik has various types of Diode's. Check out our complete collection of Diode's.

• Low forward voltage drop: reduces power loss

• High current capability: 30A total

• High surge current capability

• Fast switching speed

• Low thermal resistance

• Guard ring for enhanced ruggedness and reliability

Specifications of MBR30200PT Schottky Diode (Package-TO247)

• Average Forward Current: 30A (total), 15A per diode leg

• Repetitive Peak Reverse Voltage: 200V

• Forward Voltage Drop : 0.84V

• Storage Temperature Range: -65°C to +175°C

• Package: TO-247

Applications of MBR30200PT Schottky Diode (Package-TO247)

• High-frequency power supplies

• Freewheeling diodes

• DC-DC converters

• Battery chargers

Package Includes

      1 x MBR30200PT Schottky Diode (Package-TO247)
