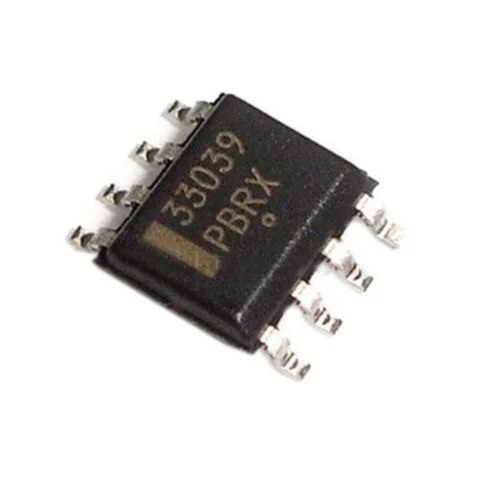

MC33039 3 Phase Brushless DC Motor Controller IC with 10-30V operation and high current drivers.

The MC33039 3 Phase Brushless DC Motor Controller IC is ideal for controlling 3-phase brushless DC motors. It operates within a voltage range of 10 to 30V, making it suitable for various applications. This IC features under-voltage lockout, a reference capable of supplying sensor power, and a fully accessible error amplifier for closed-loop servo applications. The MC33039 supports high current drivers that can control external 3-phase MOSFET bridges, ensuring efficient operation.

Designed for precise speed control, the MC33039 3 Phase Brushless DC Motor Controller utilizes Hall sensor feedback for three-phase, six-step commutation. It includes integrated directional control, enabling forward and reverse motor rotation. This product is perfect for applications requiring high efficiency and accurate motor control, making it a great choice for engineers and hobbyists alike.

Explore the capabilities of the MC33039 to enhance your projects. This motor controller IC is widely used in robotics, HVAC systems, and electric vehicles, ensuring optimal performance in demanding environments.

At DNA, we offer a wide range of products from ON Semiconductor in the Motor Driver category. Discover efficient solutions for your motor control needs. Check other Motor Driver that we have in stock.

If you need specific electronic components, reach out to DNA. We can help you find parts like Connectors, Resistors, Humidity & Temperature Sensors, and more. If we don't have it in stock, we can import it for you. Contact Us

Features of MC33039 3 Phase Brushless DC Motor Controller IC

• 10 to 30 V Operation
• Under Voltage Lockout
• High Current Drivers
• Cycle-By-Cycle Current Limiting
• Supports Closed-Loop Control

Specification of MC33039 3 Phase Brushless DC Motor Controller IC

• Supply Voltage (Vcc): 10V to 30V
• Motor Commutation: Three-phase, six-step
• Speed Control: Closed-loop with Hall sensors
• Direction Control: Forward and reverse
• Hall sensor inputs: 3 inputs

Applications of MC33039 3 Phase Brushless DC Motor Controller IC

• Robotics
• HVAC Systems
• Electric Vehicles
• Industrial Automation
• High-Performance Fans

Related Links for MC33039 3 Phase Brushless DC Motor Controller IC

• Other Products from Motor Driver Category

Package Includes

• 1 X MC33039 3 Phase Brushless DC Motor Controller IC
