26 PIN FRC MALE BOX HEADER RIGHT ANGLE

26 PIN FRC MALE BOX HEADER RIGHT ANGLE

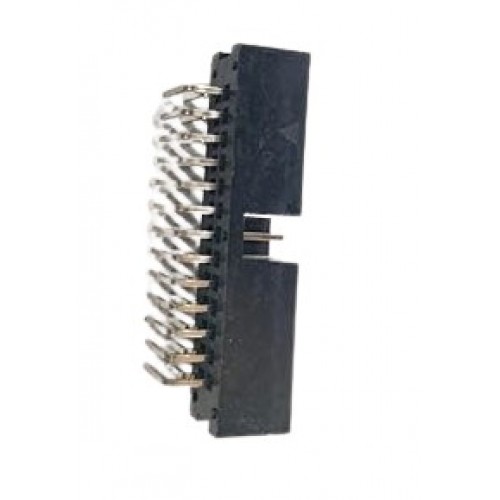

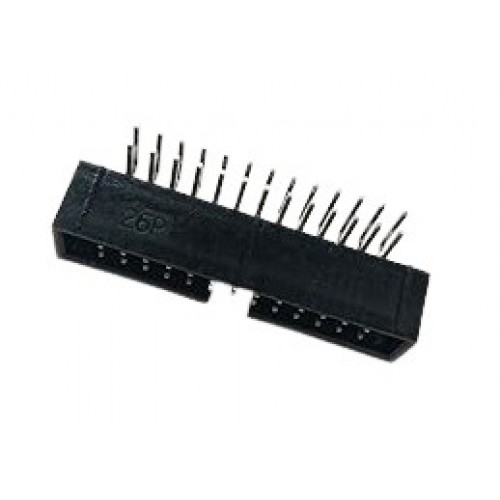

The 26-Pin FRC Male Box Header Right Angle is a dual-row, through-hole connector designed to interface with 26-conductor flat ribbon cables via female IDC connectors. With its right-angle orientation, it mounts horizontally to a PCB, making it ideal for edge access or compact enclosures. The shrouded/boxed design ensures keyed mating and prevents misalignment, offering secure, durable cable-to-board connections.

DNA solutions, Nashik has various types of Header's. Check out our complete collection of Header's.

• 26-pin dual-row configuration

• Right-angle orientation for side-exit cable connections

• 2.54 mm standard pitch for easy PCB integration

• Shrouded design with keying slot for polarized mating

• Through-hole mounting for strong mechanical connection

• Compatible with IDC flat ribbon cable female connectors

Specifications of 26 PIN FRC MALE BOX HEADER RIGHT ANGLE

• Number of Pins: 26

• Pin Pitch: 2.54 mm

• Rows: 2

• Mounting Style: Through-hole

• Orientation: Right Angle (90°)

• Contact Plating: Tin or Gold over Nickel

• Voltage Rating: Up to 250V AC/DC

Applications of 26 PIN FRC MALE BOX HEADER RIGHT ANGLE

• Cable-to-board connections

• Microcontroller headers

• Consumer electronics

• Prototyping and development boards

Package Includes

      1 x 26 PIN FRC MALE BOX HEADER RIGHT ANGLE
