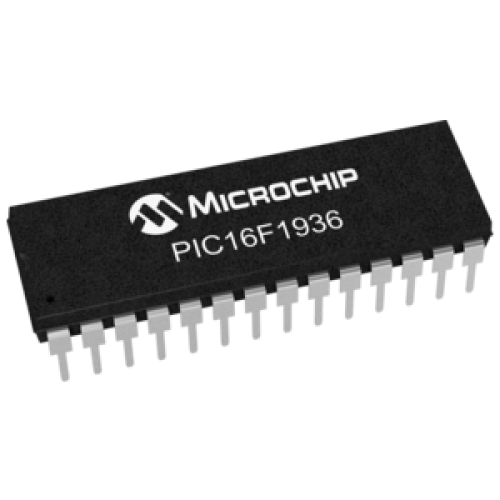

PIC16f1936 Microcontroller

This is a 28 Pin microcontroller from Microchip. It has maximum CPU speed of 32MHz with 8192 bytes of flash Memory, 256 Bytes of EEPROM & 512 bytes of SRAM. It has 25 I/O pins with, 11 pins of 10 Bit ADC, 8 capsense channels, and two comparators.

Features of PIC16f1936 :

• Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

• Flash Program Memory with self read/write capability

• 60 LCD segment drive support

• Internal 32MHz oscillator

• Integrated Capacitive mTouch Sensing Module

• Integrated Temperature Indicator

• MI2C, SPI, EUSART w/auto baud

• 3 ECCP & 2 CCP (Enhanced/Capture Compare PWM)

• Comparators with selectable Voltage Reference

• 11 Channel 10b ADC with Voltage Reference

• 25mA Source/Sink current I/O

• Four 8-bit Timers (TMR0/TMR2/TMR4/TMR6)

• One 16-bit Timer (TMR1)

• Extended Watchdog Timer (EWDT)

• Enhanced Power-On/Off-Reset

• Brown-Out Reset (BOR)

• In Circuit Serial Programming (ICSP)

• Wide Operating Voltage (1.8V – 5.5V)

• Low Power PIC16LF1936 variant (1.8V – 3.6V)
