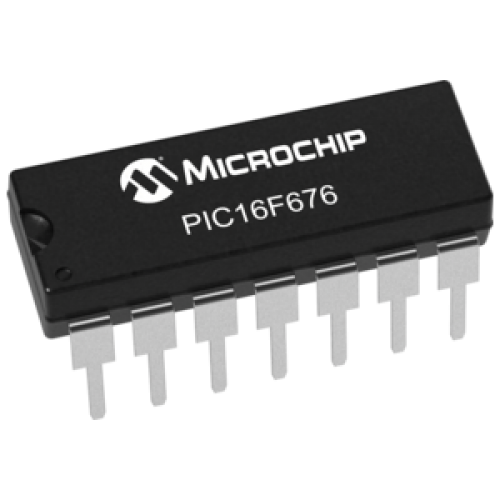

PIC16F676 Microcontroller

This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

PIC16F676 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into a 14-pin package and features 8 channels for the 10-bit Analog-to-Digital (A/D) converter, 1 comparator and 128 bytes of EEPROM data memory.

Features of PIC16F676 Micro-Controller

• 128 bytes of EEPROM Data Memory

• Programmable pull-up resistors

• Individually select able analog channels

• ICD2 programming support or debugging support with optional header adapter

• 8 oscillator sellections including precision 4 MHz RC oscillator with programmable calibration and Power-on Reset

• Program Memory Type : Flash

• Program Memory (KB) : 1.75

• CPU Speed (MIPS) : 5

• RAM Bytes : 64

• Data EEPROM (bytes) : 128

• Digital Communication Peripherals : 1-UART,

• Timers : 1 x 8-bit, 1 x 16-bit

• ADC : 8 ch, 10-bit

• Comparators : 1

• Temperature Range (C) : -40 to 125

• Operating Voltage Range (V) : 2 to 5.5

• Pin Count : 14

• Cap Touch Channels : 8
