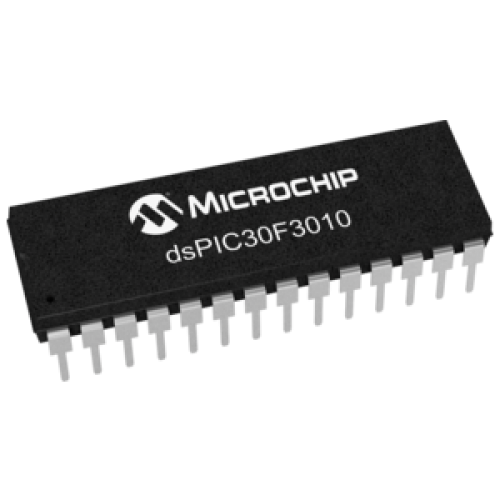

dsPIC 30F3010

High-Performance,16-Bit Digital Signal Controllers

This is a 28 pin high performance 1- bit dsPIC series Micro-controller from Microchip.

Features of dsPIC30F3010

• High-Performance Modified RISC CPU

• Modified Harvard architecture

• C compiler optimized instruction set architecture

• 84 base instructions with flexible addressing modes

• 24-bit wide instructions, 16-bit wide data path

• 16 x 16-bit working register array

• Up to 30 MIPs operation

• DC to 40 MHz external clock input

• 4 MHz-10 MHz oscillator input with PLL active (4x, 8x, 16x)

• Peripheral and External interrupt sources

• 8 user selectable priority levels for each interrupt

• 4 processor exceptions and software traps

• Primary and Alternate interrupt Vector Tables


dsPIC30F3010 Engine Features

• Modulo and Bit-Reversed Addressing modes

• Two, 40-bit wide accumulators with optional saturation logic

• 17-bit x 17-bit single cycle hardware fractional/ integer multiplier

• Single cycle Multiply-Accumulate (MAC) operation

• 40-stage Barrel Shifter

• Dual data fetch


dsPIC30F3010 Peripheral Features

• High current sink/source I/O pins: 25 mA/25 mA

• Optionally pair up 16-bit timers into 32-bit timer modules

• 3-wire SPI™ modules (supports 4 Frame modes)

• I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing

• Addressable UART modules with FIFO buffers


Motor Control PWM Module Features

• Complementary or Independent Output modes

• Edge and Center Aligned modes

• Multiple duty cycle generators

• Dedicated time base with 4 modes

• Programmable output polarity

• Dead time control for Complementary mode

• Manual output control

• Trigger for synchronized A/D conversions


Quadrature Encoder Interface Module Features

• Phase A, Phase B and Index Pulse input

• 16-bit up/down position counter

• Count direction status

• Position Measurement (x2 and x4) mode

• Programmable digital noise filters on inputs

• Alternate 16-bit Timer/Counter mode

• Interrupt on position counter rollover/underflow

Analog Features of dsPIC30F3010

• 10-bit 1 Msps Analog-to-Digital Converter (A/D)

• A/D Conversion available during Sleep and Idle

• 4 Sample/Hold Channels

• Multiple Conversion Sequencing Options

Special Microcontroller Features

• Enhanced Flash program memory: 10,000 erase/write cycle (min.) for industrial temperature range, 100K (typical)

• Data EEPROM memory: 100,000 erase/write cycle (min.) for industrial temperature range, 1M (typical) Self-re-programmable under software control

• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Flexible Watchdog Timer (WDT) with on-chip low power RC oscillator for reliable operation

• Fail-Safe clock monitor operation

• Detects clock failure and switches to on-chip low power RC oscillator

• Programmable code protection

• In-Circuit Serial Programming™ (ICSP™)

• Programmable Brown-out Detection and Reset generation

• Selectable Power Management modes

• Sleep, Idle and Alternate Clock modes

CMOS Technology

• Low power, high speed Flash technology

• Wide operating voltage range (2.5V to 5.5V)

• Industrial and Extended temperature ranges

• Low power consumption
