• PIC16f886 Microcontroller

Product Images are shown for illustrative purposes only and may differ from actual product.

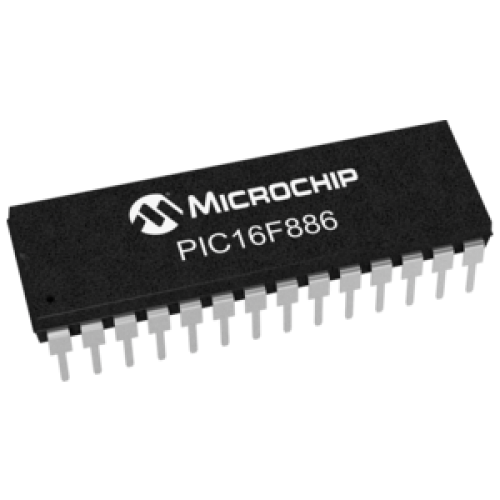

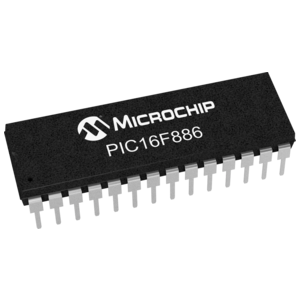

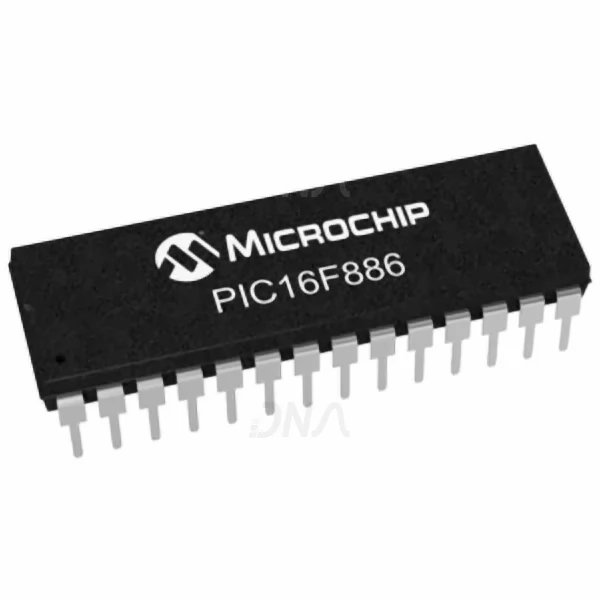

PIC16f886 Microcontroller

  • Stock: 15
  • Brand: Microchip
  • SKU: 0453 | DAA313
  • Rs. 204.61 (inc GST)
    Rs.173.40 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PIC16f886 Microcontroller

This powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into a 28 pin package.

The PIC16F886 features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 11 channels of 10-bit Analog-to-Digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances or consumer applications.

Special PIC16f886 Micro controller Features

  • Power-Saving Sleep mode
  • Power-on Reset (POR)
  • Selectable Brown-out Reset (BOR) voltage
  • Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
  • In - Circuit Serial Programming™ (ICSP™) via two pins
  • In - Circuit Debug (ICD) via two pins
  • High - endurance Flash/EEPROM cell:
  • 100,000 erase/write cycle enhanced Flash program memory, typical
  • 1,000,000 erase/write cycle data EEPROM memory, typical
  • Data EEPROM retention > 40 years
  • Self - reprogrammable under software control
  • Programmable code protection

Peripheral Features of PIC16f886

  • 1 input only pin
  • 25 I/O
  • High sink/source current 25 mA
  • Interrupt-on-pin change option

Timers

  • TMR0 : 8-bit timer/counter with 8-bit prescaler
  • TMR1 enhanced : 16-bit timer/counter with prescaler, External Gate Input mode and dedicated low-power 32 kHz oscillator
  • TMR2 : 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Capture/Compare/PWM (CCP) module
  • Enhanced Capture/Compare/PWM (ECCP) module with auto-shutdown and PWM steering
  • Master Synchronous Serial Port (MSSP) module SPI™ mode, I2C™ mode with address mask capability
  • Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module:
  • Supports RS-485, RS-232 and LIN compatibility
  • Auto-Baud Detect
  • Auto-wake-up on Start bit
  • Ultra Low-Power Wake-up (ULPWU)

Analog Features of PIC 16f886

  • 10 - bit 11 channel Analog-to-Digital (A/D) Converter
  • 2 Analog Comparator modules with:
  • Programmable on-chip Voltage Reference (CVREF) module (% of VDD)
  • Fixed 0.6 Vref
  • Comparator inputs and outputs externally accessible
  • SR Latch mode

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
