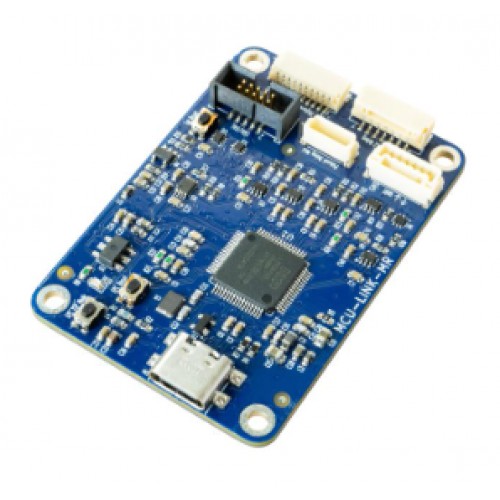

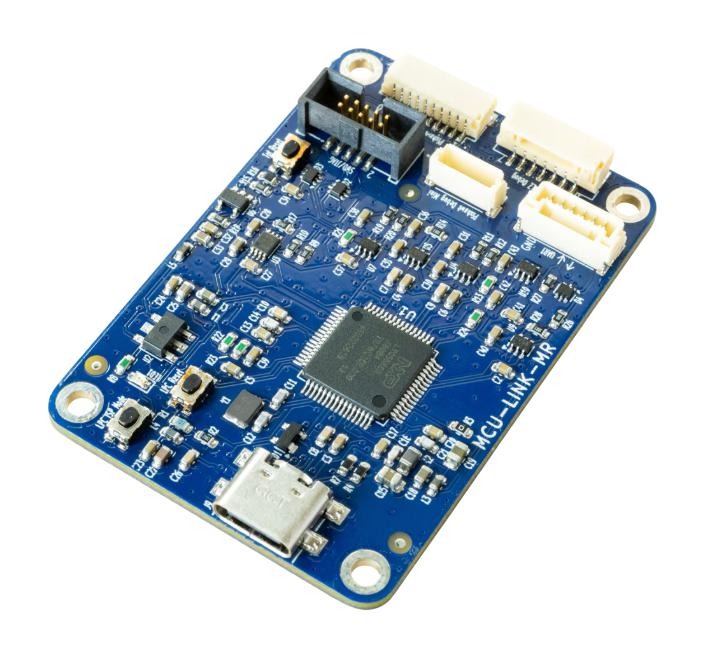

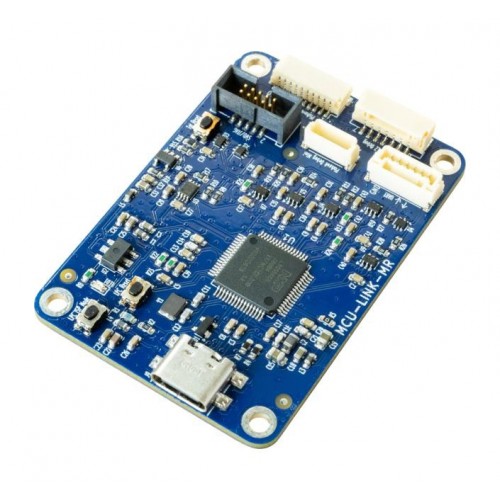

NXP MCU-LINK-MR USB Debug Probe with JTAG/SWD and Robotics Interfaces

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: NXP
  • SKU: 10809 | DAK038

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 3,114.37 (inc GST)
    Rs.2,639.30 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

NXP MCU-LINK-MR USB Debug Probe with JTAG/SWD and Robotics Interfaces

NXP MCU-LINK-MR USB debug probe with JTAG/SWD, USB-to-serial VCOM, DroneCode connectors and 1.2 V to 5 V target debug support.

The NXP MCU-LINK-MR is a USB debug probe for target debugging and serial communication. It supports JTAG/SWD debugging and works with target systems from 1.2 V to 5 V. Its USB Type-C host connection links the probe to a computer.
CMSIS-DAP-compatible firmware lets you use compatible tools and IDEs, including MCUXpresso IDE and MCUXpresso for VS Code. DroneCode connectors for Pixhawk full and mini boards, plus a DCD-LZ Debug header, help connect the probe to mobile-robotics boards. The built-in USB-to-serial COM port adds VCOM access, while a reset button and signal connections serve the target debug headers.
Use the MCU-LINK-MR to debug Pixhawk/PX4-type flight controllers and other supported mobile-robotics boards. Its combined debug and serial functions bring key development connections together in one probe.
DNA helps you find NXP tools for embedded development. Browse our Programmers range for debug probes and related hardware for your projects. Check other Programmers that we have in stock
For Indian electronics buyers, DNA can help source hard-to-find parts with import support and retail or bulk supply. Ask us about Power Supply, Digital IC, Inductor and related components. Contact Us

Features of NXP MCU-LINK-MR USB Debug Probe with JTAG/SWD and Robotics Interfaces

  • CMSIS-DAP-compatible firmware for supported tools and IDEs
  • JTAG/SWD target debugging
  • DroneCode connectors for Pixhawk full and mini boards, plus a DCD-LZ Debug header
  • USB-to-serial COM port (VCOM)
  • Reset button and signal connections to all target debug headers

Specifications of NXP MCU-LINK-MR USB Debug Probe with JTAG/SWD and Robotics Interfaces

  • Onboard microcontroller: LPC55S69 dual Arm Cortex-M33
  • Maximum onboard microcontroller frequency: Up to 150 MHz
  • Target debug voltage range: 1.2 V to 5 V
  • Host connector: USB Type-C
  • Target debug interfaces: JTAG/SWD
  • Serial interface: USB-to-serial COM port (VCOM)

Applications of NXP MCU-LINK-MR USB Debug Probe with JTAG/SWD and Robotics Interfaces

  • Debugging mobile-robotics boards, including Pixhawk/PX4-type flight controllers

Related Links for NXP MCU-LINK-MR USB Debug Probe with JTAG/SWD and Robotics Interfaces

Package Includes

  • 1 X NXP MCU-LINK-MR USB Debug Probe with JTAG/SWD and Robotics Interfaces
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
