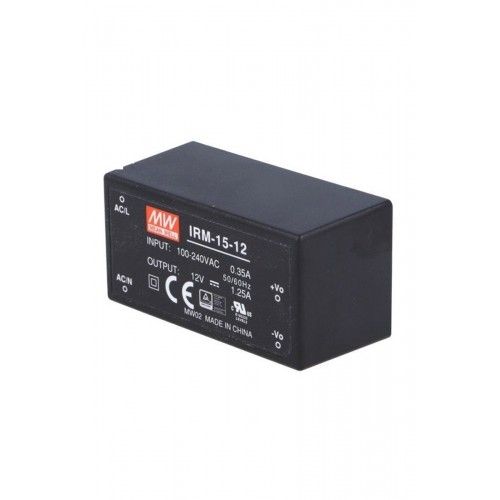

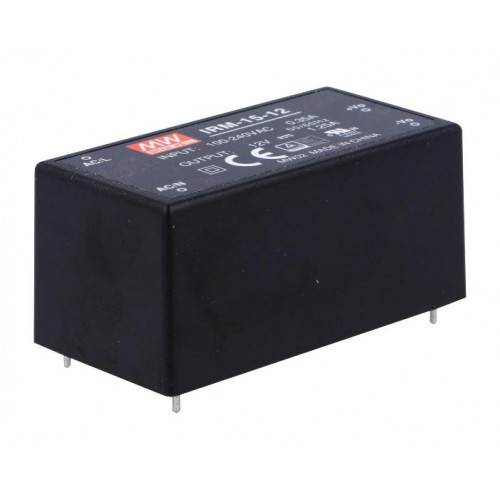

Mean Well IRM-15-12 15 W AC-DC PCB-Mount Power Supply Module
- Stock: 3
- Brand: Meanwell
- SKU: 10872 | DAH838
-
Rs. 1,242.54 (inc GST)
Rs.1,053.00 + GSTQty :
| Also Available: PMS5003 PM2.5 AIR QUALITY SENSOR BY PLANTOWER in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
Mean Well IRM-15-12 15 W AC-DC PCB-Mount Power Supply Module
IRM-15-12 AC-DC PCB-mount supply with 12 V, 1.25 A output, 15 W power and 85–305 VAC / 120–430 VDC input.
Features of Mean Well IRM-15-12 15 W AC-DC PCB-Mount Power Supply Module
- Accepts AC or DC input across a universal input design
- Provides short-circuit, overload and overvoltage protection
- Restarts automatically after an overload fault clears
- Meets EMI Class B without added components
- Uses free-air convection cooling
- Class II isolation design with no FG pin
Specifications of Mean Well IRM-15-12 15 W AC-DC PCB-Mount Power Supply Module
- Input voltage: 85–305 VAC or 120–430 VDC
- Output voltage: 12 V
- Rated output current: 1.25 A
- Rated output power: 15 W
- No-load power consumption: <0.1 W
- Operating temperature: −30 to +70 °C (refer to derating curve)
- Input-to-output withstand voltage: 3 kVAC
- Dimensions: 52.4 × 27.2 × 24 mm (L × W × H)
Applications of Mean Well IRM-15-12 15 W AC-DC PCB-Mount Power Supply Module
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Hand-held electronic devices
Related Links for Mean Well IRM-15-12 15 W AC-DC PCB-Mount Power Supply Module
Package Includes
- 1 X Mean Well IRM-15-12 15 W AC-DC PCB-Mount Power Supply Module
