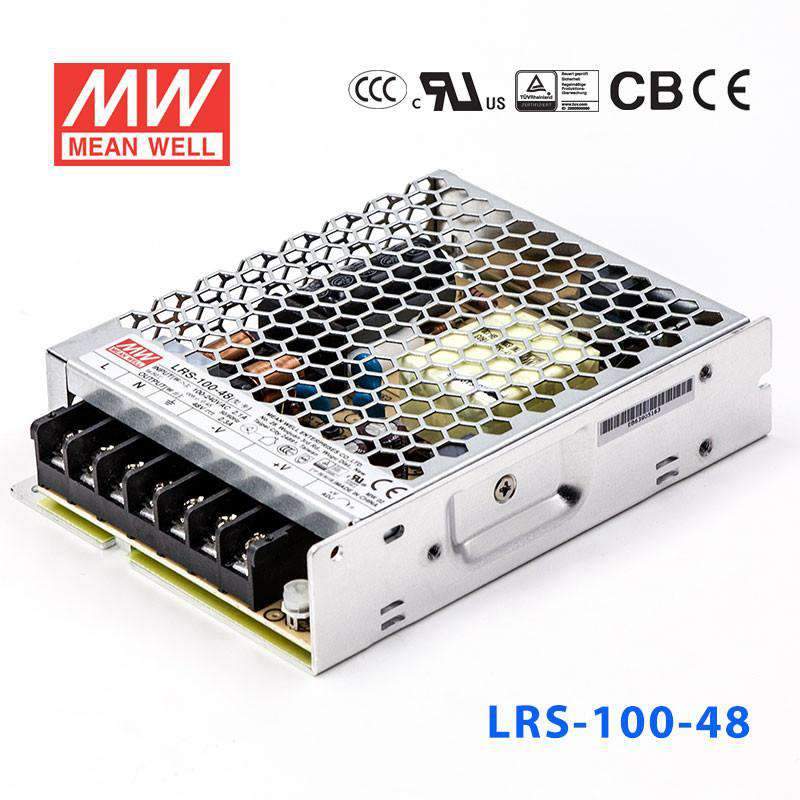

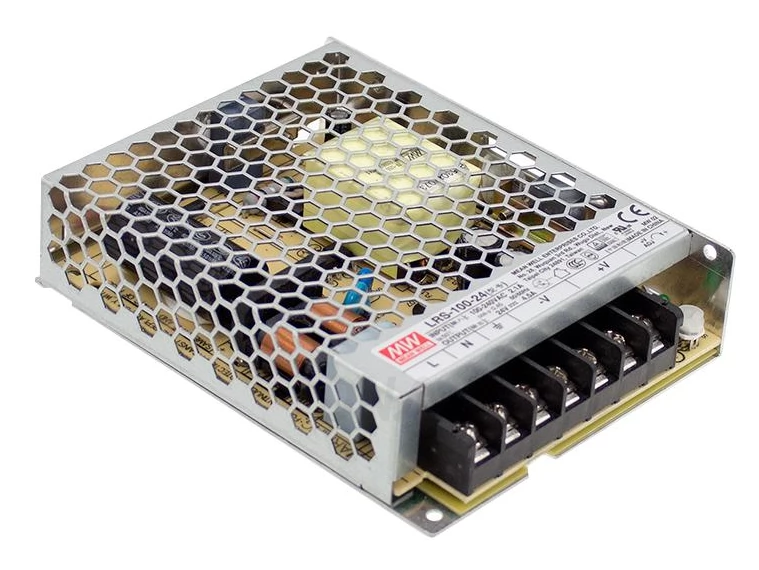

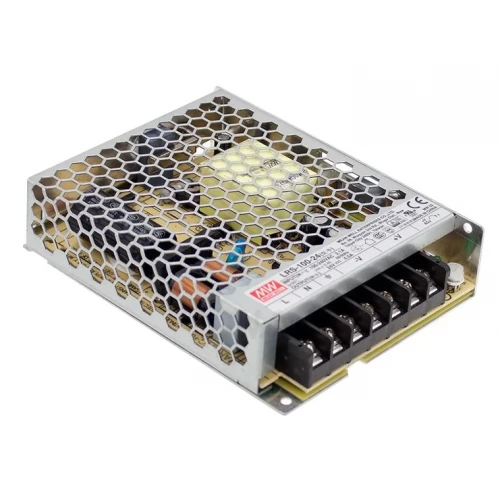

MEAN WELL LRS-100-48 48 V Single-Output Enclosed Switching Power Supply

MEAN WELL LRS-100-48 48 V Single-Output Enclosed Switching Power Supply

LRS-100-48 enclosed switching power supply with 48 V DC output, 2.3 A rated current, 110.4 W rated power and 85–264 VAC or 120–373 VDC input.

The MEAN WELL LRS-100-48 is a single-output enclosed power supply that converts AC or DC input power to a 48 V DC output. It delivers up to 2.3 A and 110.4 W, and accepts 85–264 VAC or 120–373 VDC input.

Its enclosed metal-mesh case suits equipment installations, while free-air convection cooling removes the need for a fan. Overload protection uses hiccup mode and recovers after the fault clears. Overvoltage protection shuts down the output until power is cycled. An LED indicates power-on status.

Use this supply in industrial automation machinery, control systems, electronic instruments and household appliances. Its single 48 V output serves equipment that needs a regulated DC supply in an enclosed format.

DNA stocks Meanwell power supplies for electronics projects and equipment needs. Explore the Meanwell SMPS range to find a suitable option for your design. Check other Meanwell SMPS that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. We can also help you find related Analog IC, Sensor, Connectors, Digital IC, Super Capacitor and Sensor Module products. Contact Us

Features of MEAN WELL LRS-100-48 48 V Single-Output Enclosed Switching Power Supply

• Enclosed metal-mesh case for equipment installation
• Single-output design provides a 48 V DC supply
• Free-air convection cooling needs no fan
• Hiccup-mode overload protection recovers after the fault clears
• Overvoltage protection shuts down the output until power is cycled
• LED indicates power-on status

Specifications of MEAN WELL LRS-100-48 48 V Single-Output Enclosed Switching Power Supply

• DC output voltage: 48 V
• Rated output current: 2.3 A
• Rated output power: 110.4 W
• Input voltage range: 85–264 VAC or 120–373 VDC
• Input frequency range: 47–63 Hz
• Efficiency: 91% typical
• Operating temperature: −30 to +70 °C, subject to derating
• Dimensions (L × W × H): 129 × 97 × 30 mm

Applications of MEAN WELL LRS-100-48 48 V Single-Output Enclosed Switching Power Supply

• Industrial automation machinery
• Industrial control systems
• Electronic instruments, equipment or apparatus
• Household appliances

Related Links for MEAN WELL LRS-100-48 48 V Single-Output Enclosed Switching Power Supply

• MEAN WELL LRS-100-48 48 V Single-Output Enclosed Switching Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X MEAN WELL LRS-100-48 48 V Single-Output Enclosed Switching Power Supply
