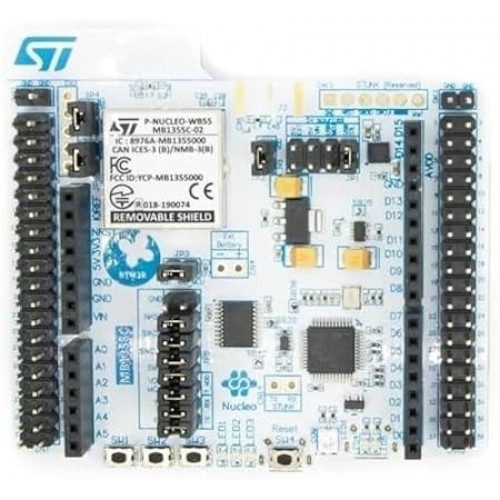

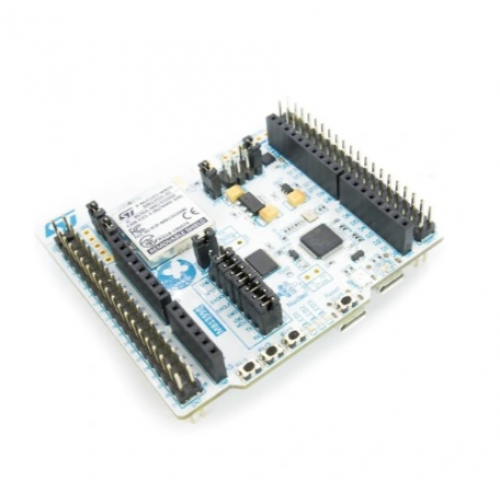

NUCLEO-WB55RG Development Board STM32WB Nucleo-64

NUCLEO-WB55RG Development Board STM32WB Nucleo-64, STM32WB55RGV6U 32bit ARM Cortex-M0+ Cortex-M4

The NUCLEO-WB55RG Development Board STM32WB Nucleo-64, STM32WB55RGV6U 32bit ARM Cortex-M0+ Cortex-M4 is a powerful development platform designed by STMicroelectronics. It integrates a dual-core STM32WB55RGV6U microcontroller, combining a high-performance ARM Cortex-M4 core with a low-power Cortex-M0+ core to support advanced wireless connectivity and application processing. The board includes an onboard ST-LINK debugger/programmer, Arduino Uno V3 headers for easy expansion, and a USB interface. This board is ideal for prototyping BLE (Bluetooth Low Energy), Zigbee, Thread, and general-purpose embedded applications.

DNA solutions, Nashik has various types of Development Board's. Check out our complete collection of Development Board's.

Features of NUCLEO-WB55RG Development Board

• Based on STM32WB55RGV6U microcontroller with dual-core ARM Cortex-M4 and Cortex-M0+

• Bluetooth Low Energy 5.0, IEEE 802.15.4 (ZigBee/Thread)

• On-board ST-LINK/V2-1 debugger and programmer

• Arduino Uno V3 connectivity support

• USB connectivity and power via Micro-USB

• Flexible board power supply options: ST-LINK USB VBUS or external sources

Specifications of NUCLEO-WB55RG Development Board

• Microcontroller: STM32WB55RGV6U

• Core: ARM Cortex-M4 at 64 MHz + Cortex-M0+ at 32 MHz

• Flash memory: 1 MB

• SRAM: 256 KB

• Wireless connectivity: BLE 5.0, IEEE 802.15.4

• Programming/debug interface: ST-LINK/V2-1

• Expansion: Arduino Uno V3 headers

Applications of NUCLEO-WB55RG Development Board

• Bluetooth Low Energy (BLE) development

• IoT device prototyping and connectivity projects

• ZigBee and Thread wireless applications

• Embedded systems and sensor interfacing

• Wearable and smart home applications

Package Includes

      1 x NUCLEO-WB55RG Development Board
