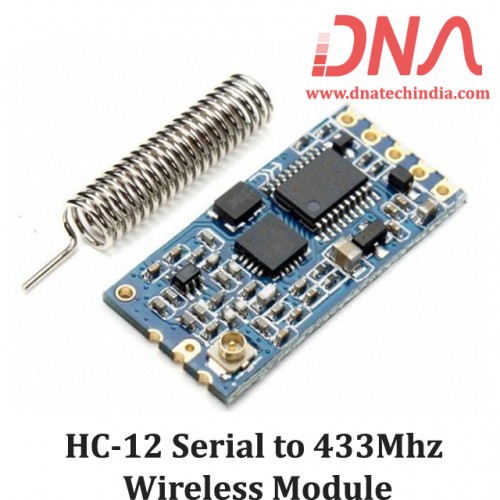

  • HC-12 Serial to 433Mhz Wireless Module

Product Images are shown for illustrative purposes only and may differ from actual product.

HC-12 Serial to 433Mhz Wireless Module

  • Stock: 15
  • SKU: 1029 | DAA690
  • Rs. 536.90 (inc GST)
    Rs.455.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

HC-12 Wireless Data Transmission Module

The serial RF module is a low cost, high performance transparent FSK transceiver with operating at 433 MHz.

HC-12 Module is easy to use simple serial 433Mhz wireless Module based on proven Silab's SI4463 RF Chip and STM8 MCU on single module making it easy to use with serial UART data. The serial RF module is a low cost, high performance transparent FSK transceiver with operating at 433 MHz. It features small size, high output power, high sensitivity, long transmission distance and high communication data rate with auto set up for communication change and data receiving and transmission control. With the UART interface, it is easy to setup the wireless data transmission with only providing the UART data. It is flexible for the users to set the UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.

HC-12 wireless serial port communication module is a new-generation multichannel embedded wireless data transmission module. Its wireless working frequency band is 433.4-473.0MHz, multiple channels can be set, with the stepping of 400 KHz, and there are totally 100 channels. The maximum transmitting power of module is 100mW (20dBm), the receiving sensitivity is -117dBm at baud rate of 5,000bps in the air, and the communication distance is 1,000m in open space.

There is MCU inside the module, and user don’t need to program the module separately, and all transparent transmission mode is only responsible for receiving and sending serial port data, so it is convenient to use. The module adopts multiple serial port transparent transmission modes, and user could select them by AT command according to use requirements.

The average working current of three modes FU1, FU2 and FU3 in idle state is 80μa, 3.6mA an 16mA respectively, and the maximum working current is 100mA (in transmitting state). This module can not work individually, at least 2 pcs would be needed to create the communication. Please also note that this module do not work with the 434Mhz Serial RF Module HC-1.

Features of HC-12

  • Long-distance wireless transmission (1,000m in open space/baud rate 5,000bps in the air)

  • Working frequency range (433.4-473.0MHz, up to 100 communication channels)

  • Maximum 100mW (20dBm) transmitting power (8 gears of power can be set)

  • Three working modes, adapting to different application situations

  • Built-in MCU, performing communication with external device through serial port

  • The number of bytes transmitted unlimited to one time

  • Working frequency : 433.4MHz to 473.0MHz

  • Supply voltage : 3.2V to 5.5VDC

  • Communication distance : 1,000m in the open space

  • Serial baud rate : 1.2Kbps to 115.2Kbps(default 9.6Kbps)

  • Receiving sensitivity : -117dBm to -100dBm

  • Transmit power : -1dBm to 20dBm

  • Interface protocol : UART/TTL

  • Operating temperature : -40℃ to +85℃

  • Dimensions : 27.8mm x 14.4mm x 4mm
