ADS1115 16 Bit I2C ADC Module

  • Stock: 178
  • SKU: 1019 | DAA730
  • Rs. 264.79 (inc GST)
    Rs.224.40 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

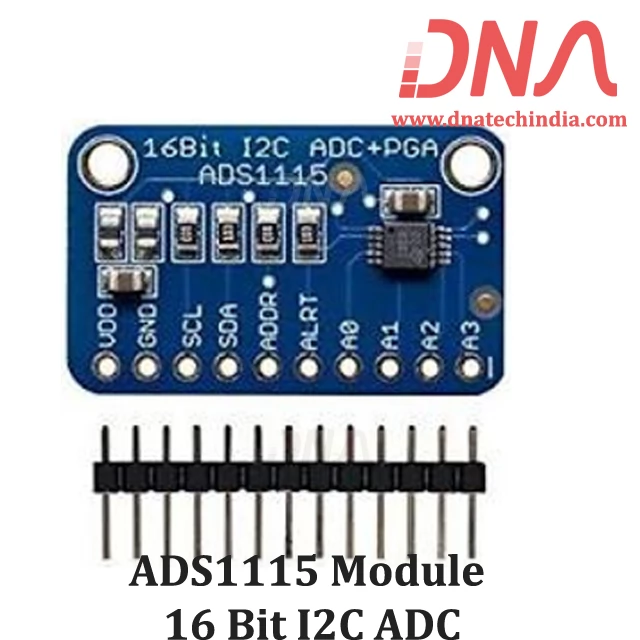

ADS1115 Module 16 Bit I2C ADC Module

ADS1115 Module, 16 Bit I2C ADC Module Compatible with Arduino, Raspberry Pi & ESP8266

This 16 bit ADC Module is based on Texas Instruments ADS1115 16 bit ADC IC. ADS1115 is a precision, low power, 16bit, I2C compatible, analog to digital converter IC. ADS1115 IC incorporate a low-drift voltage reference and an oscillator. The ADS1115 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS1115 well suited for power- and space-constrained, sensor measurement applications.

The ADS1115 ADC IC perform conversions at data rates up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large and small signal measurements. The ADS1115 module features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the ADS1115 for under and over voltage detection.

The ADS1115 16bit I2C ADC module provides pinout to the compact ADS1115 IC and makes it easy to use with any Microcontroller, Arduino as well as with raspberry Pi.

We also have ADS1115 IC you can buy it online from here.

We have Various sizes of  ADC & DAC Modules. Check out our complete collection of ADC and DAC Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ADS1115 Module

  • ADC Bit rate : 16 Bit

  • Interface Type : I2C

  • Channels : 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs

  • Input voltage : 2.0 - 5.5 volts

  • Channel input voltage : 0 - VDD

  • Continuous Mode : Only 150μA

  • Single-Shot Mode : Auto Shut-Down

  • PROGRAMMABLE DATA RATE : 8sps to 860sps

  • Input range programmed control, 7 types input ranges : -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V

  • I2C 7-bit addresses between 0x48-0x4B

Applications ADS1115 ADC IC

  • Portable instrumentation

  • Consumer goods

  • Battery monitoring

  • Temperature measurement

  • Factory automation and process controls

Related Information


Package Includes

  • 1 x ADS1115 16 Bit I2C ADC Module

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
