Product Images are shown for illustrative purposes only and may differ from actual product.

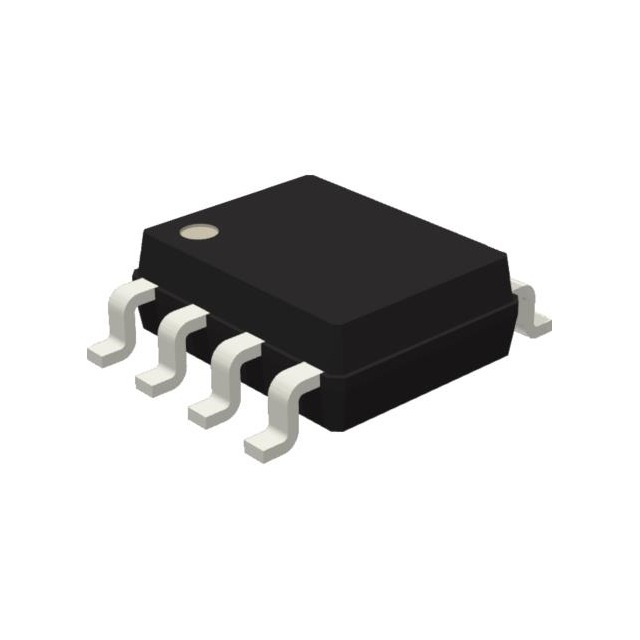

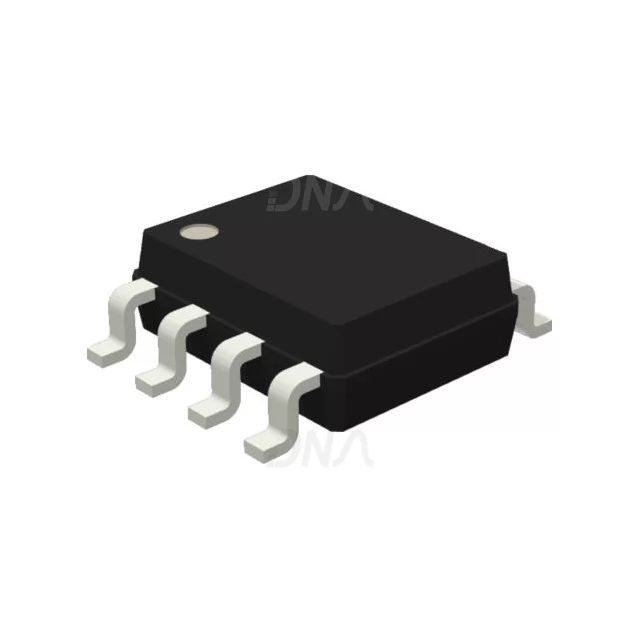

LS7183NS Encoder 8-SOIC SMD IC


Write a review | 0 reviews

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-03-22

  • SKU: 3964 | DAG664

Availability: InStock priceValidUntil: 2026-03-22

  • Rs. 1,097.40 (inc GST)
    Rs.930.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

LS7183NS Encoder 8-SOIC SMD IC

LS7183NS Encoder 8-SOIC IC

The LS7183N are CMOS quadrature clock converters. Quadrature clocks derived from optical or magnetic encoders, when applied to the A and B inputs of the LS7183N / LS7184N, are converted to strings of Up Clocks and Down Clocks (LS7183N) or to a Clock and an Up/Down direction control (LS7184N). These outputs can be interfaced directly with standard Up/Down counters for direction and position sensing of the encoder.

DNA solutions, Nashik has various types of SMD IC. Check out our complete collection of  SMD IC'S.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LS7183NS Encoder 8-SOIC SMD IC

  • x1, x2 and x4 resolution
  • Programmable output pulse width (200ns to 140µs)
  • Excellent regulation of output pulse width
  • TTL and low voltage CMOS compatible I/Os
  • +3V to +12V operation (VDD- VSS)
  • LS7183N,LS7184N (DIP) LS7183N-S, LS7184N-S(SOIC)

Specifications of LS7183NS Encoder 8-SOIC SMD IC

  • Operating Temperature Range: 0°C to +70°C
  • Storage Temperature Range: -65°C to +150°C

      • Package Includes

      1 x LS7183NS (SOIC) SMD IC

      Extra Information
      Country of Origin China
      Imported By ElectroSource Private Limited
