Product Images are shown for illustrative purposes only and may differ from actual product.

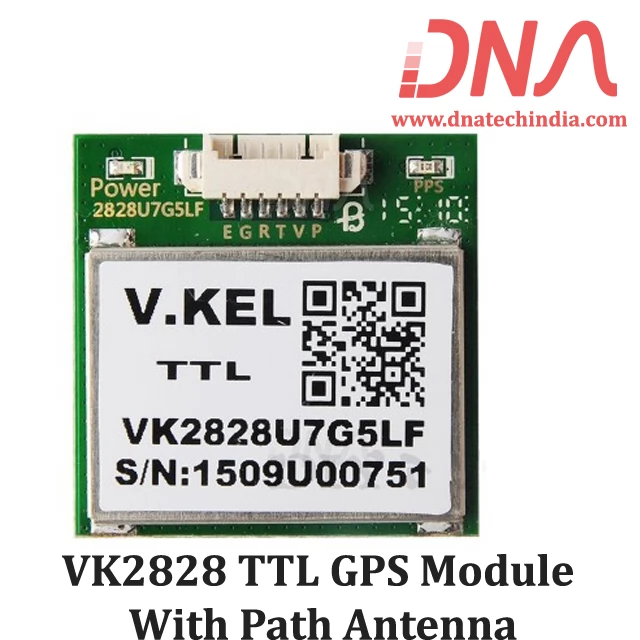

VK2828 TTL GPS Module With Path Antenna

  • Stock: Out Of Stock
  • SKU: 1119 | DAB037
  • Rs. 944.00 (inc GST)
    Rs.800.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

VK2828 TTL GPS Module With Patch Antenna

VK2828U7G5LF/VK2828 weight is about 14g, in the same with the specifications of the products is the smallest, performance is strongest, the most exquisite GPS module.

Built-in fast 50 satellite positioning and tracking ability ublox chip, the built-in battery backup, built-in high gain LNA, the "double road, PCB zedoary process, large area radiation GPS signal, not the locator. Signal is better and more stable. With optional baud rate, 4800, 9600, 19200, 384, and so on rate and RMC, GSV, GSA, GGA, vacations, GLL statements, such as free combination, let you use this product more easily. Default output of 9600 standard (if you need to use other baud rate please take note the baud rate, we modify for you as you want. 4800-38400.)

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of VK2828

  • Chip : UBX-G7020-KT
  • C/A code,1.023MHz Stream
  • receive frequency : L1 [1575.42MHz]
  • receive channel : 56CH
  • S11 SWR : <=1.3
  • S11 Smith : 50Ohm+(-)5%
  • S21 Log Mag : >=20.0dB
  • S22 SWR : <=1.3
  • Location Performance :
  • <2.5m[Autonomous][50%]
  • <2m[SBAS]
  • rate : <0.1m/s
  • direction : <0.5 Degrees
  • Timing accuracy : 30ns
  • Reference coordinate system : WGS-84
  • Maximum altitude:50,000 m
  • Acceleration : <4g
  • Tracking sensitivity : -162dBm
  • catch sensitivity : -160dBm
  • root time : 29s (in average)
  • warm root time : 28s(in average)
  • hot root time : 1s(in average)
  • AGPS : 3s

Related Information

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
