Product Images are shown for illustrative purposes only and may differ from actual product.

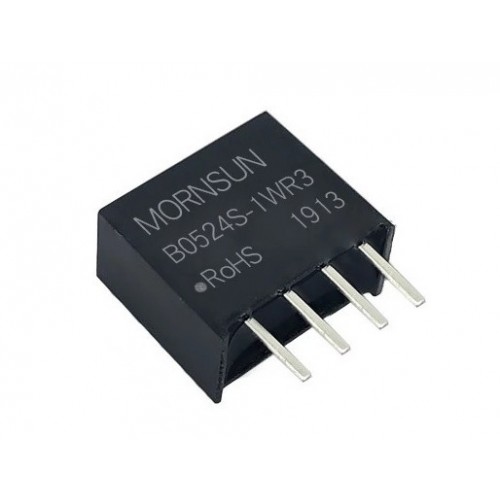

MORNSUN B0524S-1WR3 Isolated DC-DC Converter

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 3917 | DAG622

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 160.48 (inc GST)
    Rs.136.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MORNSUN B0524S-1WR3 Isolated DC-DC Converter

MORNSUN B0524S-1WR3 isolated DC-DC converter with 4.5–5.5 VDC input, 24 VDC single output, 1 W power and 1,500 VDC isolation test.

The MORNSUN B0524S-1WR3 is an isolated DC-DC converter that turns a 4.5–5.5 VDC input into a single, unregulated 24 VDC output. Its 1 W output suits low-power circuits that need a separate output supply.
Input-to-output isolation helps separate circuit sections. The converter also has continuous self-recovering short-circuit protection, so it resumes operation after a short circuit clears. Its industry-standard pinout supports board integration.
Use this 24 VDC converter for digital circuits, low-frequency analog circuits, relay-driven circuits and data switching circuits. Its compact board layout can help when space is limited.
Explore MORNSUN power products at DNA, an Indian retailer of electronic components. Browse our Mornsun SMPS range to find converters for your design and purchasing needs. Check other Mornsun SMPS that we have in stock
If you cannot find a part, contact DNA for import support. We help Indian electronics buyers with retail and bulk orders. Ask us about related HMI Display, Power Supply, Development Module, Programmer, Nextion Display or MOSFET products. Contact Us

Features of MORNSUN B0524S-1WR3 Isolated DC-DC Converter

  • Input-to-output isolation
  • Single-output conversion
  • Continuous, self-recovering short-circuit protection
  • Industry-standard pinout
  • Compact four-pin layout

Specifications of MORNSUN B0524S-1WR3 Isolated DC-DC Converter

  • Input voltage: 4.5–5.5 VDC, 5 VDC nominal
  • Output voltage: 24 VDC, single unregulated output
  • Output current: 4–42 mA
  • Output power: 1 W
  • Full-load efficiency: 81% minimum, 85% typical
  • Input-to-output isolation test voltage: 1,500 VDC minimum for 1 minute
  • Operating temperature: −40°C to +105°C, with derating from 85°C
  • Dimensions: 11.60 × 6.00 × 10.16 mm

Applications of MORNSUN B0524S-1WR3 Isolated DC-DC Converter

  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven circuits
  • Data switching circuits

Related Links for MORNSUN B0524S-1WR3 Isolated DC-DC Converter

Package Includes

  • 1 X MORNSUN B0524S-1WR3 Isolated DC-DC Converter
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
