Mornsun LM450-20B48 450 W Enclosed AC/DC Switching Power Supply

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 11130 | DAJ889

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 4,498.51 (inc GST)
    Rs.3,812.30 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

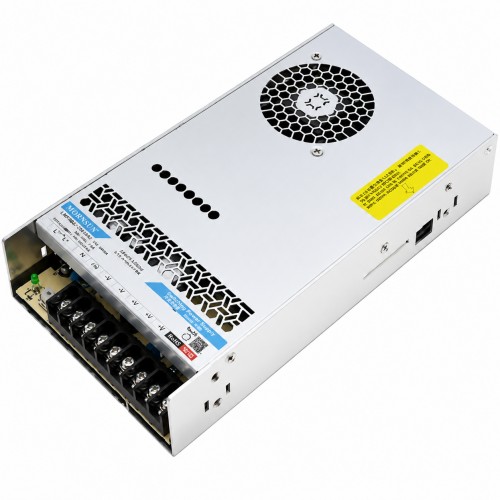

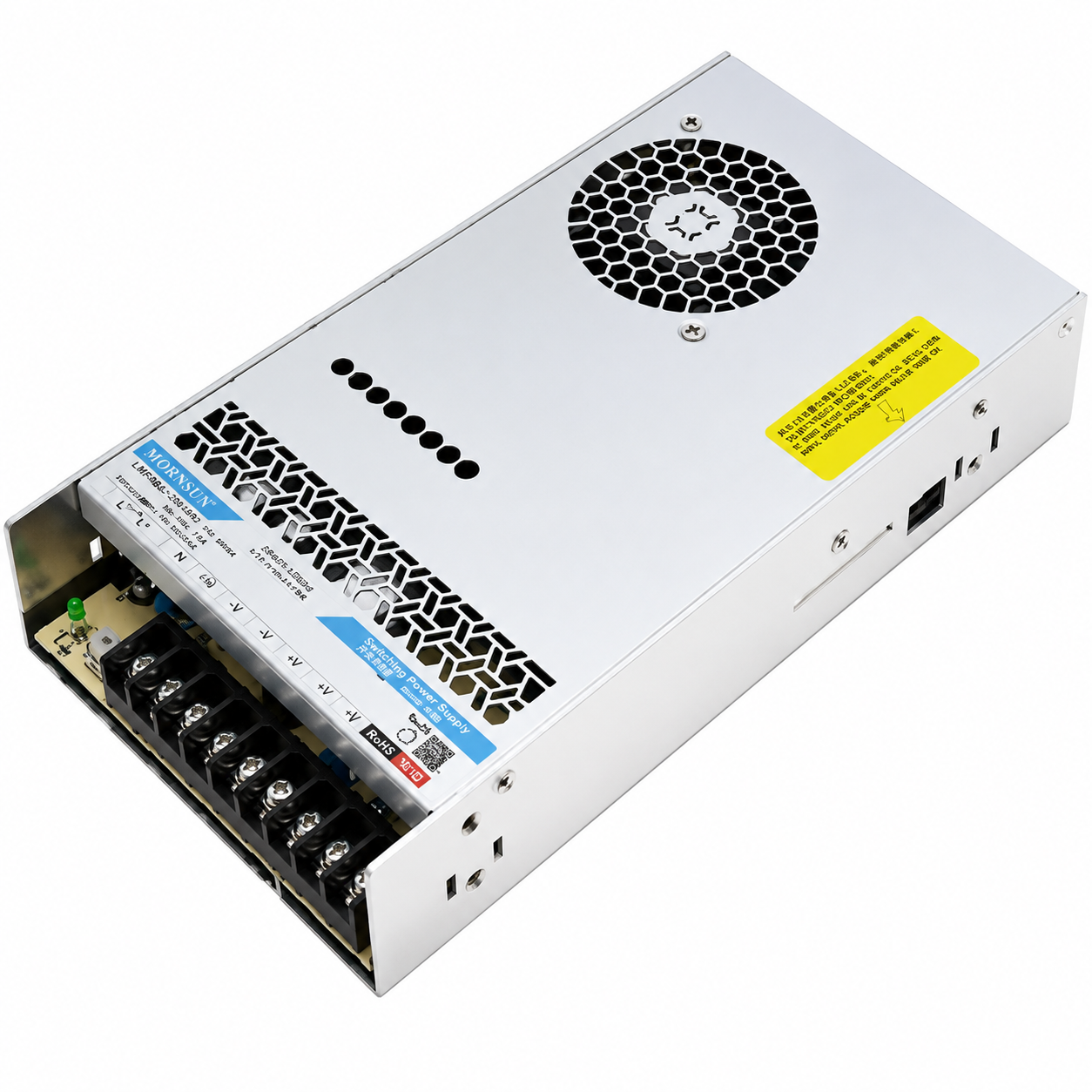

Mornsun LM450-20B48 450 W Enclosed AC/DC Switching Power Supply

Mornsun LM450-20B48 enclosed AC/DC switching power supply with 48 V DC output, 9.4 A rated current and 451.2 W rated power.

The Mornsun LM450-20B48 is an enclosed AC/DC switching power supply that converts AC or DC input to a nominal 48 V DC output. It has a rated output current of 9.4 A and a rated output power of 451.2 W.
The unit accepts AC or DC input through the same terminals. Its forced-air cooling helps remove heat, while short-circuit, over-current, over-voltage and over-temperature protection supports safe operation. You can also adjust the output voltage to suit the load.
This enclosed 48 V power supply suits industrial, LED, street light control and telecommunications equipment. Its integrated AC/DC input and output protection can simplify power integration in these systems.
DNA stocks Mornsun power supplies for electronic design, maintenance and production needs. Browse our Mornsun SMPS range to find a suitable unit for your application. Check other Mornsun SMPS that we have in stock
Buying electronic parts in India? Contact DNA if you cannot find the part you need. We support retail and bulk orders, plus imports for hard-to-find items. Ask us about Resistors, Development boards, Capacitors, LCDs, Humidity & Temperature Sensors or Crystals. Contact Us

Features of Mornsun LM450-20B48 450 W Enclosed AC/DC Switching Power Supply

  • Accepts AC or DC input through the same terminals
  • Forced-air cooling
  • Built-in short-circuit, over-current, over-voltage and over-temperature protection
  • Adjustable output voltage
  • Enclosed metal case

Specifications of Mornsun LM450-20B48 450 W Enclosed AC/DC Switching Power Supply

  • Rated output voltage: 48 V DC
  • Rated output current: 9.4 A
  • Rated output power: 451.2 W maximum total output power
  • AC input voltage: 90–132 VAC with switch set to 115, or 180–264 VAC with switch set to 230
  • DC input voltage: 255–370 VDC with switch set to 230
  • Efficiency: 92% typical at 230 VAC
  • Operating temperature: −40°C to +70°C, with power derating from −40°C to −20°C and +50°C to +70°C
  • Dimensions: 225.00 × 124.00 × 35.00 mm

Applications of Mornsun LM450-20B48 450 W Enclosed AC/DC Switching Power Supply

  • Industrial equipment
  • LED equipment
  • Street light control
  • Telecommunications equipment

Related Links for Mornsun LM450-20B48 450 W Enclosed AC/DC Switching Power Supply

Package Includes

  • 1 X Mornsun LM450-20B48 450 W Enclosed AC/DC Switching Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
