Mornsun LS15-23B15DR3 15W AC/DC Converter Module

  • Stock: 25

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 10542 | DAJ469

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 568.04 (inc GST)
    Rs.481.39 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

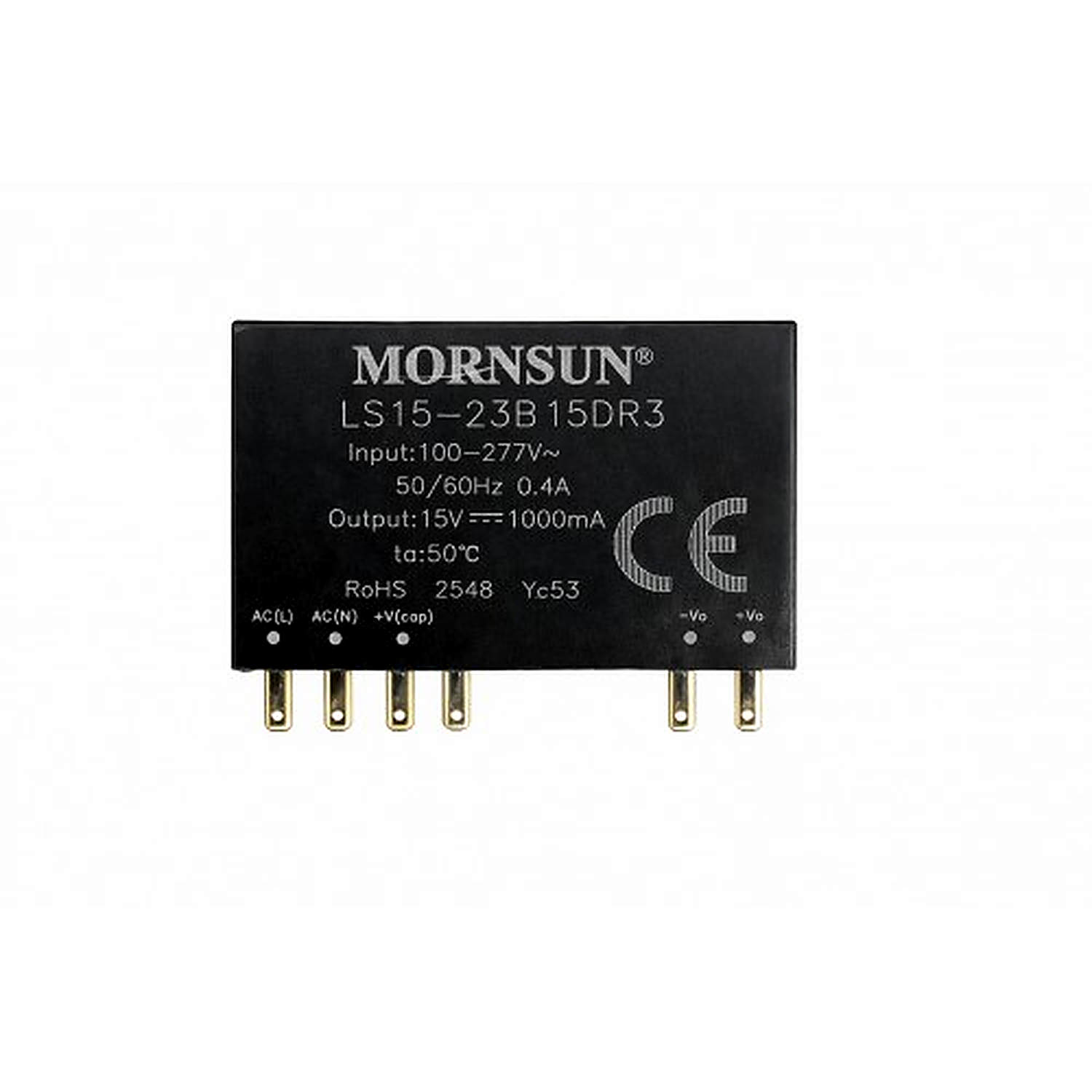

Mornsun LS15-23B15DR3 15W AC/DC Converter Module

Mornsun LS15-23B15DR3 AC/DC converter module with 15W output, 15V 1A rating, and AC or DC input.

The Mornsun LS15-23B15DR3 is a 15W AC/DC converter module that changes AC or DC input into an isolated 15V DC output. Its 1A rated output suits equipment that needs a compact, board-level power source. The potted module uses six pins for input, capacitor connections and output.
Accepting AC or DC input on the same terminals gives designers input flexibility. Input-to-output isolation separates the output side from the input. Short-circuit protection uses hiccup operation and self-recovers, while over-current protection also self-recovers. The module can maintain stable output at light loads.
Use it in industrial control and instrumentation, as well as smart-home equipment. Its integrated AC/DC conversion and isolated output can simplify power design in these systems.
DNA, an Indian electronics retailer, offers Mornsun SMPS for electronics buyers. Explore Mornsun power products in this category, with support for retail and bulk orders. Check other Mornsun SMPS that we have in stock
If you cannot find a part, contact DNA for import support and help with retail or bulk orders. Ask about related items such as capacitors, diodes, DC to DC Converter ICs and development modules. Contact Us

Features of Mornsun LS15-23B15DR3 15W AC/DC Converter Module

  • Accepts AC or DC input through the same terminals
  • Input-to-output isolation
  • Short-circuit protection with hiccup operation and self-recovery
  • Self-recovering over-current protection
  • Stable output at very light loads

Specifications of Mornsun LS15-23B15DR3 15W AC/DC Converter Module

  • Rated output power: 15 W
  • Output voltage and current: 15 V, 1 A rated
  • AC input voltage: 85–305 VAC, with power derating at 85–100 VAC and 277–305 VAC
  • DC input voltage: 100–430 VDC, with power derating at 100–140 VDC and 390–430 VDC
  • Input frequency: 47–63 Hz for AC input
  • Efficiency: 84% typical at 230 VAC
  • Operating temperature: −40°C to +85°C, with power derating of 1.72%/°C from +50°C to +85°C
  • Dimensions: 33.34 × 21.50 × 9.72 mm

Applications of Mornsun LS15-23B15DR3 15W AC/DC Converter Module

  • Industrial control
  • Instrumentation
  • Smart home

Related Links for Mornsun LS15-23B15DR3 15W AC/DC Converter Module

Package Includes

  • 1 X Mornsun LS15-23B15DR3 15W AC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
