• TIP105 PNP SILICON POWER DARLINGTON TRANSISTOR

Product Images are shown for illustrative purposes only and may differ from actual product.

TIP105 PNP SILICON POWER DARLINGTON TRANSISTOR

  • Stock: Out Of Stock
  • SKU: 7229 | DAG914
  • Rs. 73.99 (inc GST)
    Rs.62.70 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TIP105 PNP SILICON POWER DARLINGTON TRANSISTOR

TIP105 PNP SILICON POWER DARLINGTON TRANSISTOR

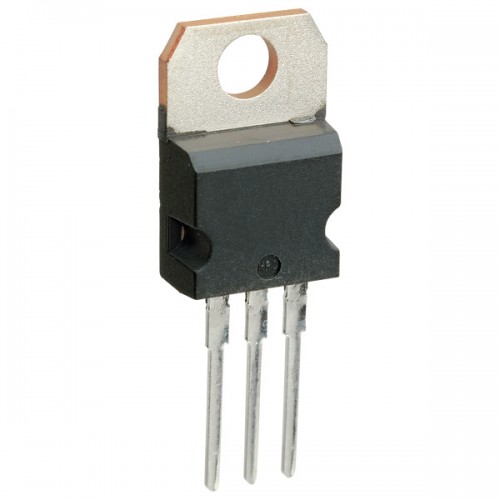

The TIP105 is a silicon Epitaxial-Base PNP transistor in monolithic Darlington configuration mounted in TO-220 plastic package intented for use in power linear and switching applications. It consists of two NPN transistors connected in a Darlington configuration, which provides very high current gain, making it ideal for driving heavy loads like motors, relays, and lamps.

DNA solutions, Nashik has various types of Transistor's. Check out our complete collection of  Transistor's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TIP105 MOSFET

  • High Current Gain: The TIP105 has a very high DC current gain, making it suitable for switching and amplification purposes.
  • High Collector-Emitter Voltage: It can handle a collector-emitter voltage (Vce) of up to 60V.
  • High Current Capability: The TIP105 can handle a continuous collector current (Ic) of up to 8A, with a peak of 15A.
  • Low Saturation Voltage: It has a low saturation voltage (Vce(sat)), making it efficient in switching applications.
  • Base-Emitter Voltage: The base-emitter voltage (Vbe) is typically around 2.0V at 4.0A collector current.
  • Complementary PNP Transistor: The TIP105 is often paired with the TIP106 PNP transistors in various push-pull or complementary output stages.

Applications of TIP105 MOSFET

  • Linear and switching industrial equipment
  • Audio power amplifier
  • General power switching
  • DC-AC converter
  • Easy driver for low voltage dc motor

    Package Includes

    • 1 x TIP105 MOSFET

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
