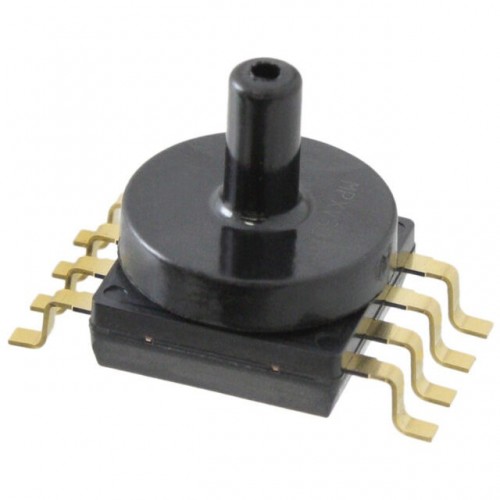

MPXV5050VC6T1 High Temperature Accuracy Integrated Silicon Pressure Sensor

MPXV5050VC6T1 High Temperature Accuracy Integrated Silicon Pressure Sensor

The MPXV5050VC6T1 High Temperature Accuracy Integrated Silicon Pressure sensor integrates on-chip, bipolar op amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. The small form factor and high reliability of on-chip integration make the NXP Semiconductor pressure sensor a logical and economical choice for the system designer. The MPXV5050V series piezo resistive transducer is a state-of-the-art, monolithic, signal conditioned, silicon pressure sensor. This sensor combines advanced micromachining techniques, thin film metallization, and bipolar semiconductor processing to provide an accurate, high level analog output signal that is proportional to applied pressure.

DNA solutions, Nashik has various types of Pressure Sensor's. Check out our complete collection of Pressure Sensor's.

• 2.5% Maximum Error over 0° to 85°C

• Ideally suited for Microprocessor or Microcontroller-Based Systems

• Temperature Compensated from Over -40° to +125°C

• Patented Silicon Shear Stress Strain Gauge

• Durable Thermoplastic (PPS) Surface Mount Package

• Easy-to-Use Chip Carrier Option

Specifications of MPXV5050VC6T1 High Temperature Accuracy Integrated Silicon Pressure Sensor

• Pressure Range: 0 to 50 kPa (0 to 7.25 psi)


• Operating Voltage Range: 4.75 to 5.25 V DC


• Output Voltage Range: 0.2 V to 4.7 V DC (proportional to the applied pressure)


• Accuracy: ±1.5% (within 0°C to +85°C)


• Sensitivity: 45 mV/kPa (typical)


• Response Time: 1 ms (typical for a 0 to 63% change in pressure)


• Compensated Temperature Range: 0°C to +85°C


• Operating Temperature Range: -40°C to +125°C


Package Includes

• 1 x MPXV5050VC6T1 High Temperature Accuracy Integrated Silicon Pressure Sensor
