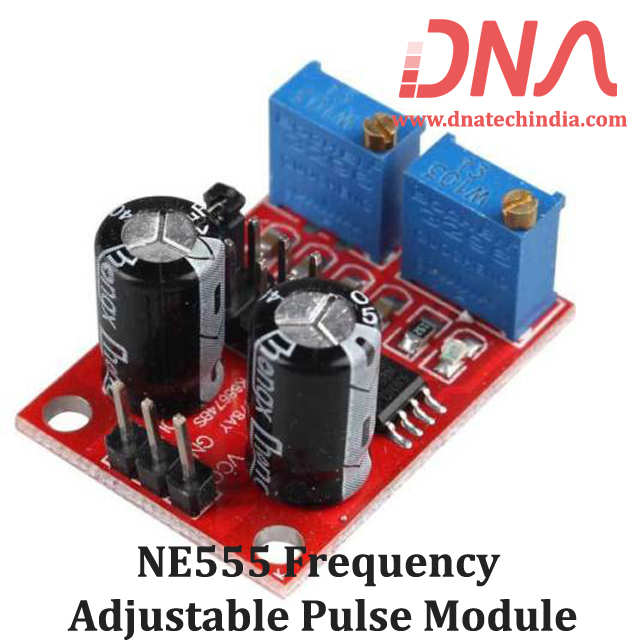

NE555 Frequency Adjustable Pulse Module


Write a review | 1 reviews

  • Stock: 25

    Availability: InStock priceValidUntil: 2026-05-17

  • Brand: Generic
  • SKU: 1474 | DAA968

Availability: InStock priceValidUntil: 2026-05-17

  • Rs. 80.00 (inc GST)
    Rs.67.80 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

NE555 Frequency Adjustable Pulse Module

NE555 Frequency Adjustable Pulse Generator Module

This is a very simple and compant module for generating square wave. It is based on NE555 IC and can be used to generate square wave pulses from about 4 Hz to 1.3 Khz, this can be used for experimental development, or driving a stepper motor, it would be also a good choice for users learning working of LM555 IC.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

  • Size : 31mm * 22mm;
  • Main chip : NE555;
  • Input Voltage : 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;
  • Input current : >=100MA
  • Output amplitude : 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
  • Maximum output current : >=15MA (5V power supply, V-PP greater than 50%),
                                                           >=35MA (12V power supply, V-PP greater than 50%)
  • Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes);
  • The output frequency range is selectable :
            LF file : 1Hz ~ 50Hz
            IF file : 50Hz ~ 1kHz
            High - frequency file: 1KHz ~ 10kHz
            HF file : 10kHz ~ 200kHz
  • The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable ; adjusting the duty cycle will change the frequency

Application

  • As a square wave signal generator,generates a square wave signal used for experimental development.
  • Used to drive a stepper motor for generating a square wave drive signal.
  • Generate adjustable pulse for MCU.
  • Generate adjustable pulse,to control circuitry associated.

Package includes:

  • 1 x NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
