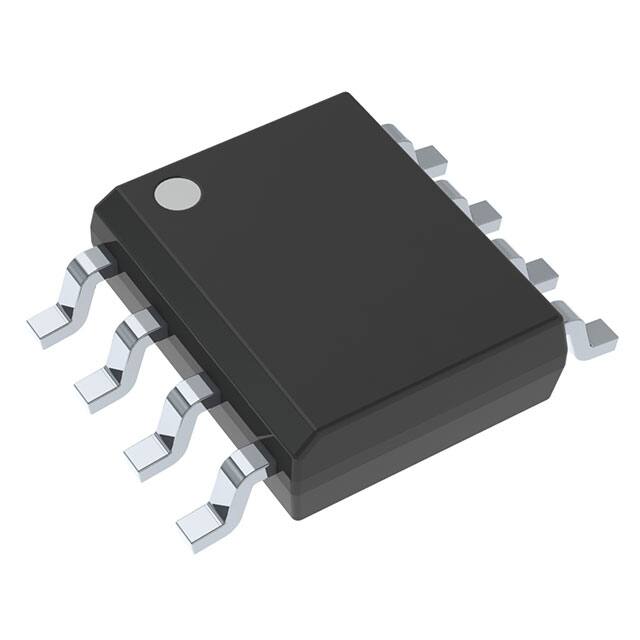

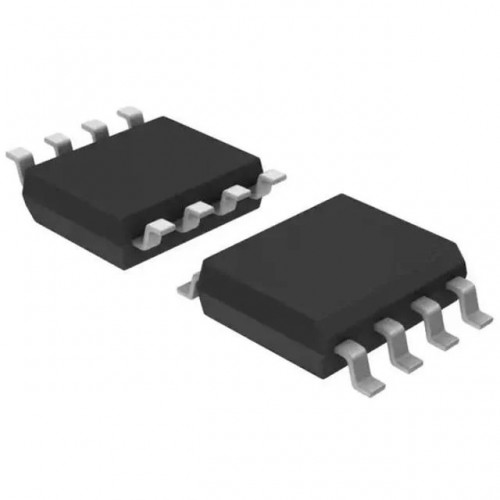

NOVOSENSE NST175H-QSPR Digital Temperature Sensor IC

  • Stock: 14

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: NOVOSENSE
  • SKU: 10923 | DAK214

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 56.64 (inc GST)
    Rs.48.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

NOVOSENSE NST175H-QSPR Digital Temperature Sensor IC

NST175H-QSPR digital temperature sensor IC with SMBus/I2C, 1.62 V to 5.5 V supply and 0.0625°C resolution at 12-bit setting.

The NOVOSENSE NST175H-QSPR is a digital temperature sensor IC that measures temperature and sends readings over SMBus or I2C. It operates across a 1.62 V to 5.5 V supply range and supports a temperature range of -55°C to 125°C. Its configurable temperature resolution suits designs that need to balance reading detail and conversion needs.
The sensor includes a programmable ALERT output with comparator or interrupt mode. Shutdown and one-shot conversion modes help manage power when continuous readings are not needed. Support for up to 27 device addresses lets designers place several sensors on a shared bus. These features make it a useful SMBus and I2C temperature sensor for compact systems.
Use the NST175H-QSPR for PCB temperature measurement, computer peripheral thermal protection, system thermal management, and environmental monitoring or HVAC. Its integrated digital interface and programmable temperature alert support temperature monitoring without a separate external conversion stage.
DNA stocks NOVOSENSE components for electronics design and repair. Browse our Temperature and Humidity Sensor range to find parts for your next build. Check other Temperature and Humidity Sensor that we have in stock
DNA supports Indian electronics buyers with retail and bulk orders, plus import support when a part is hard to find. Browse items such as PCB, IC bases and sockets, and power supply modules. Contact Us

Features of NOVOSENSE NST175H-QSPR Digital Temperature Sensor IC

  • Measures temperature and provides digital readings
  • SMBus and I2C-compatible two-wire interface
  • Programmable ALERT output with comparator or interrupt mode
  • Selectable ALERT polarity and fault queue
  • Shutdown and one-shot conversion modes

Specifications of NOVOSENSE NST175H-QSPR Digital Temperature Sensor IC

  • Supply voltage: 1.62 V to 5.5 V
  • Operating temperature range: -55°C to 125°C
  • Temperature accuracy: ±0.5°C typical and ±1°C maximum from -20°C to 85°C
  • Temperature resolution: 0.0625°C at 12-bit setting
  • Conversion time: 24 ms typical and 32 ms maximum
  • Interface: SMBus and I2C
  • I2C clock frequency: Up to 400 kHz in fast mode or 2 MHz in high-speed mode
  • Package: SOP-8

Applications of NOVOSENSE NST175H-QSPR Digital Temperature Sensor IC

  • General system thermal management
  • Computer peripheral thermal protection
  • Environmental monitoring and HVAC
  • Industrial Internet of Things

Related Links for NOVOSENSE NST175H-QSPR Digital Temperature Sensor IC

Package Includes

  • 1 X NOVOSENSE NST175H-QSPR Digital Temperature Sensor IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
