Product Images are shown for illustrative purposes only and may differ from actual product.

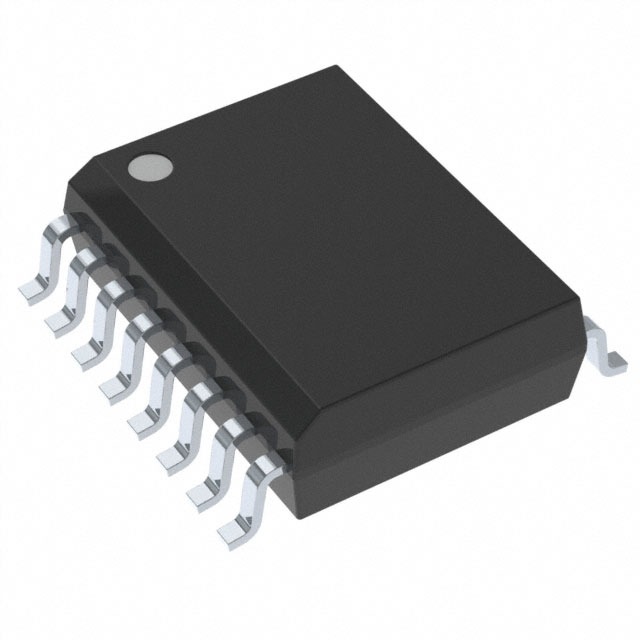

Texas Instruments ISO6762DWR Six-Channel Reinforced Digital Isolator

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Texas Instruments
  • SKU: 11292 | DAJ100

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 480.02 (inc GST)
    Rs.406.80 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Texas Instruments ISO6762DWR Six-Channel Reinforced Digital Isolator

ISO6762DWR is a six-channel reinforced digital isolator with four forward channels, two reverse channels, data rates up to 50 Mbps and 1500 VRMS working isolation.

The Texas Instruments ISO6762DWR is a six-channel digital isolator for transferring digital signals across an isolation barrier. It has four forward channels and two reverse channels, with a 1500 VRMS working isolation voltage.
Its capacitive silicon dioxide barrier supports galvanic isolation without an optical input stage. Independent supply ranges allow logic-level translation between supported voltage domains. The default-high output gives this non-F variant a defined output state, and data rates up to 50 Mbps suit faster signal links.
Use the ISO6762DWR in power supplies, motor drives, factory automation, or isolated UART, SPI, RS-485, RS-232 and CAN links. Its mix of forward and reverse channels can simplify signal isolation across connected control circuits.
DNA stocks Texas Instruments components for electronic design and production. Explore the Texas Instruments range in OptoCouplers & OptoIsolators. Check other OptoCouplers & OptoIsolators that we have in stock
If you cannot find a part, contact DNA for import support. We help Indian electronics buyers with retail and bulk orders for components such as Analog ICs, Development Modules and DC to DC Converter ICs. Contact Us

Features of Texas Instruments ISO6762DWR Six-Channel Reinforced Digital Isolator

  • Four forward and two reverse channels combine signal paths in one device
  • Capacitive silicon dioxide barrier provides galvanic isolation
  • Independent supply ranges support logic-level translation
  • Default-high output defines the output state for the non-F variant
  • High common-mode transient immunity helps maintain signal integrity during fast voltage changes

Specifications of Texas Instruments ISO6762DWR Six-Channel Reinforced Digital Isolator

  • Channels: 6 (4 forward, 2 reverse)
  • Supply voltage, VCC1 and VCC2: 1.71 V to 1.89 V or 2.25 V to 5.5 V, each supply set independently
  • Maximum data rate: 50 Mbps
  • Working isolation voltage: 1500 VRMS
  • Withstanding isolation voltage: 5000 VRMS (UL 1577, 60-second qualification test)
  • Operating ambient temperature: -40°C to 125°C
  • Package: 16-pin SOIC wide-body, TI designation DW-16
  • Package dimensions: 10.30 mm × 7.50 mm, maximum height 2.65 mm

Applications of Texas Instruments ISO6762DWR Six-Channel Reinforced Digital Isolator

  • Power supplies
  • Motor drives
  • Factory automation
  • UART, SPI, RS-485, RS-232 and CAN signal isolation

Related Links for Texas Instruments ISO6762DWR Six-Channel Reinforced Digital Isolator

Package Includes

  • 1 X Texas Instruments ISO6762DWR Six-Channel Reinforced Digital Isolator
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
