• PDTC114ET, 215 Bipolar Pre-Biased Digital Transistor

Product Images are shown for illustrative purposes only and may differ from actual product.

PDTC114ET, 215 Bipolar Pre-Biased Digital Transistor

  • Stock: Out Of Stock
  • SKU: 9466 | DAI333
  • Rs. 13.47 (inc GST)
    Rs.11.42 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PDTC114ET, 215 Bipolar Pre-Biased Digital Transistor

PDTC114ET, 215 Bipolar Pre-Biased Digital Transistor

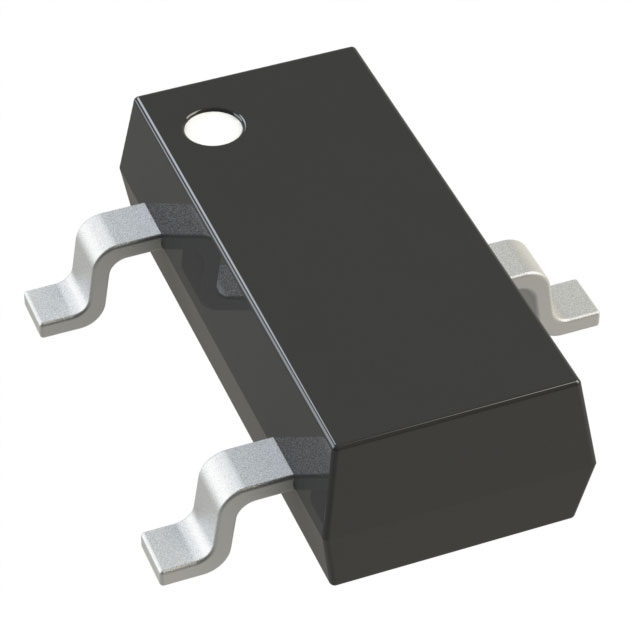

The PDTC114ET, 215 is a pre-biased NPN digital transistor in a compact SOT-23 package, featuring integrated 10 kΩ base and emitter resistors. It supports up to 100 mA collector current and 50 V collector-emitter voltage. Designed for switching applications, it simplifies circuit design by eliminating external biasing components. With low saturation voltage and high transition frequency, it is ideal for signal interfacing and digital logic applications.

DNA solutions, Nashik has various types of Transistor's. Check out our complete collection of Transistor's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PDTC114ET, 215 Bipolar Pre-Biased Digital Transistor

  • 100 mA output current capability
  • Built-in bias resistors
  • Simplifies circuit design
  • Reduces component count
  • Reduces pick and place costs

Specifications of PDTC114ET, 215 Bipolar Pre-Biased Digital Transistor

  • Product Category: Digital Transistors
  • Configuration: Single
  • Transistor Polarity: NPN
  • Typical Input Resistor: 10 k Ohms
  • Typical Resistor Ratio: 1
  • Mounting Style: SMD/SMT
  • Package/Case: SOT-23-3
  • Continuous Collector Current: 100 mA

Applications of PDTC114ET, 215 Bipolar Pre-Biased Digital Transistor

  • Digital switching
  • Microcontroller I/O interfacing
  • Relay drivers
  • LED drivers
  • Signal inverters or level shifters

    Package Includes

          1 x PDTC114ET, 215 Bipolar Pre-Biased Digital Transistor

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
