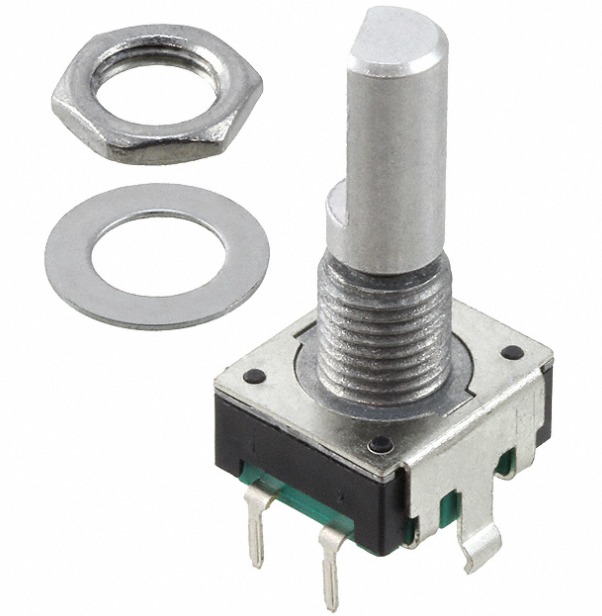

PEC11R-4020F-S24  Vertical, With Momentary Push Switch

PEC11R-4020F-S24  Vertical, With Momentary Push Switch

The PEC11R-4020F-S24 is a vertical mount incremental rotary encoder that features a momentary push button switch. It is designed to detect rotational movement and can also be pressed like a button. Typically, this type of encoder is used in applications where both turning (rotation) and pressing (button press) are required to perform different functions.

DNA solutions, Nashik has various types of Switch's. Check out our complete collection of Switch's.

• Momentary Push Switch: The integrated push switch allows for a momentary action when the knob is pressed, which is useful for activating or deactivating certain functions in a system

• Rotary Encoder: Provides precise rotational input, often used to measure angular displacement, or to select values in menu-based applications

• Vertical Mount: Designed to be mounted vertically in the circuit or device, saving space or fitting into specific mechanical designs

• Durability: This encoder is designed for reliability and longevity, often with a high number of rotations (typically 20,000+ cycles)

Specifications of PEC11R-4020F-S24  Vertical, With Momentary Push Switch

• Mounting Style: Vertical

• Actuator Type: Knob

• Electrical Rating: Typically rated at 50mA to 100mA

• Push Switch Current Rating: Often rated at 0.1A to 0.5A

• Rotational Angle: 360°

• Operating Temperature: Typically between -40°C to 85°C

Applications of PEC11R-4020F-S24  Vertical, With Momentary Push Switch

• Consumer Electronics

• Industrial Controls

• Computers & Peripherals

• Automotive

• Home Automation

Package Includes

      1 x PEC11R-4020F-S24  Vertical, With Momentary Push Switch
