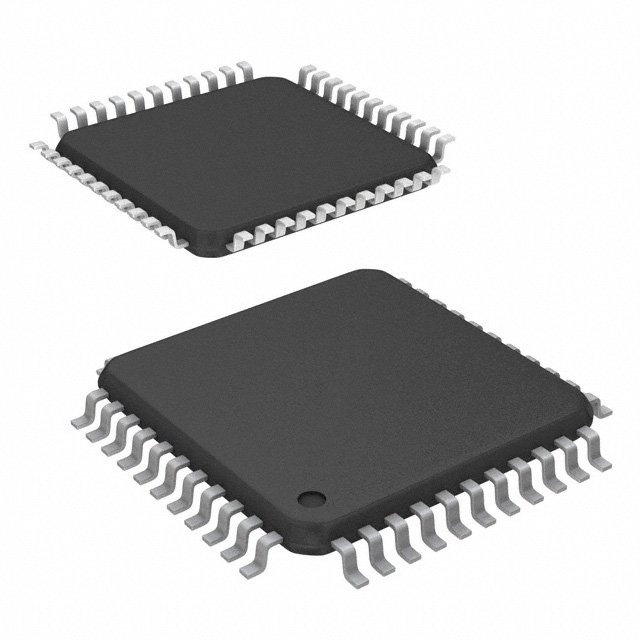

PIC18F46K20 MICROCONTROLLER SMD IC

PIC18F46K20 MICROCONTROLLER SMD IC

The PIC18F46K20 is an 8-bit high-performance microcontroller from Microchip, featuring a PIC18 core with nanowatt XLP technology for ultra-low power consumption. It offers 64 KB Flash, 3.8 KB RAM, and 1 KB EEPROM, with support for UART, SPI, I²C, and a 10-bit ADC. Operating at up to 64 MHz, it includes multiple timers, PWM, and watchdog features. It supports a voltage range of 1.8V to 3.6V and is available in 40/44-pin PDIP, TQFP, and QFN packages.

DNA solutions, Nashik has various types of Microcontroller IC's. Check out our complete collection of Microcontroller IC's.

• Core: PIC18 with 16-bit wide instructions and 8-bit data path

• Operating Frequency: Up to 64 MHz using internal PLL

• Program Memory: 64 KB Flash

• RAM: 3.8 KB

• EEPROM: 1 KB

• Operating Voltage: 1.8 V to 3.6 V

• I/O Pins: Up to 36

• Timers: Four timers

Specifications of PIC18F46K20 MICROCONTROLLER SMD IC

• Product Category: 8-bit Microcontrollers-MCU

• Program Memory Size: 64 kB

• Package/Case: TQFP-44

• Maximum Clock Frequency: 64 MHz

• ADC Resolution: 10 bit

• Number of I/Os: 36 I/O

• Supply Voltage-Min:1.8 V

• Mounting Style: SMD/SMT

• Program Memory Type: Flash

Applications of PIC18F46K20 MICROCONTROLLER SMD IC

• Industrial Automation

• Consumer Electronics

• Communication Devices

• Medical Devices

• Power and Energy Systems

Package Includes

      1 x PIC18F46K20 MICROCONTROLLER SMD IC
