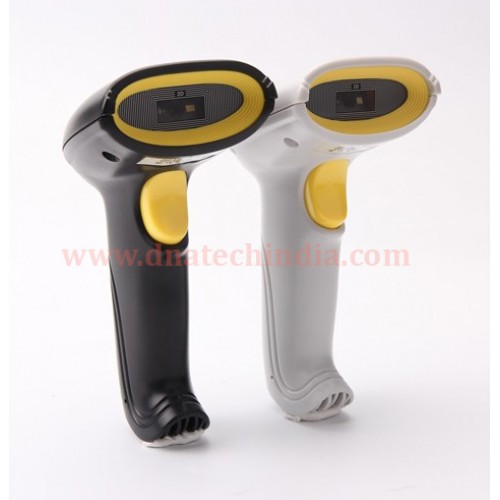

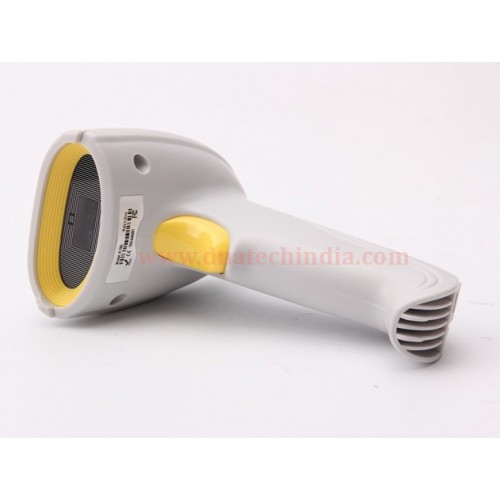

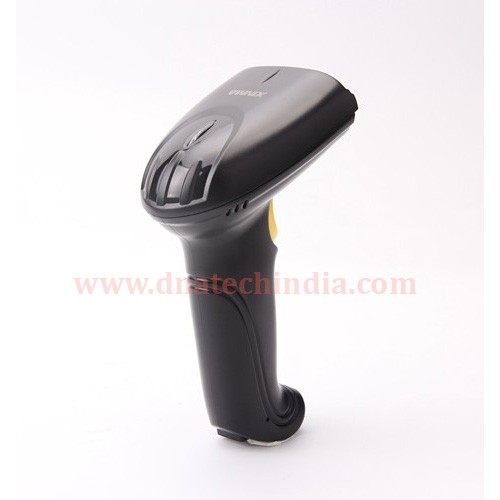

RS232 Qr Code & 2D Barcode Scanner

  • Stock: Out Of Stock
  • SKU: 1304 | DAB802
  • Rs. 6,726.00 (inc GST)
    Rs.5,700.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

RS232 Qr Code & 2D Barcode Scanner

2D Image Barcode Reader & QR Code Scanner

Want to read QR Code or 2D Barcode with your Micro-controller?  Well this is perfect QR code scanner for your application. Just give it 5 volts supply and it is ready to go. Scan any QR code and it will provide RS232 output which can be connected to PC's com port or you can use a RS232 to TTL converter Module or MAX232 IC and interface it to your Micro-controller as well.

Features of QR Code Scanner

  • Light source : White LED
  • Sighting device : Red LED, 167nm
  • Indicator light : Green for decoding success; Red for decoding failure
  • Interface : RS232
  • Scanning speed : 150scans/sec
  • Scanning type : Image
  • Scanning angle : Elevation angle±70°,Inclination angle±60°,Rotation angle±180°
  • Recognisable printing contrast : Minimum 30% contrast
  • Decoding capacity : Standard 1D, 2D and qr barcodes
  • Dememtion(L*W*H) : 165mm*70mm*98mm
  • Weight : 140 g (not including the cable)
  • Housing material : ABS+PC+TPU
  • Color : Black/White/Yellow
  • Input voltage : 4~5.5V DC
  • Operating power : 2W; 400mA @5V–typical value
  • Standby power : 0.45W; 90mA @5V–typical value
  • DC power supply : Class 2; 5.2VDC @ 1A
  • EMC : EN55022, EN55024, Class B
  • LED safety certificate : IEC62471
  • CB : IEC60950
  • Certificate : CE, FCC, FDA, RoHS
  • Working temperature : 0°C ~40°C
  • Storage temperature : -40°C ~ 60°C
  • Humidity : 5%-95% relative humidity, not condensation state
  • Illumination : 0~100,000LUX
  • Shock resistance : Can bear the shock dropping from 2 meters height to the concrete surface
  • Dust proof : Seal up to prevent dust
  • IP level : IP54
  • Electrostatic protection : 15kv
  • Barcode density : Depth of scanning field
  • 5 mil Code39 : 33~95mm (1.3~3.7 in.)
  • 13 mil UPC-A : 32~255mm (1.3~10.0 in.)
  • 20 mil Code39 : 35~355mm (1.4~14.0 in.)
  • 6.7 mil PDF417 : 30~95mm (1.2~3.7 in.)
  • 10 mil Data Matrix : 30~100mm (1.2~3.9 in.)
  • 15 mil Data Matrix : 21~162mm (0.8~6.4 in.)
  • 20 mil Q : R23~200mm (0.9~7.9 in.)
  • Resolution : 4mil
  • Tolerance : 100mm/sec 13mil UPC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
