Product Images are shown for illustrative purposes only and may differ from actual product.

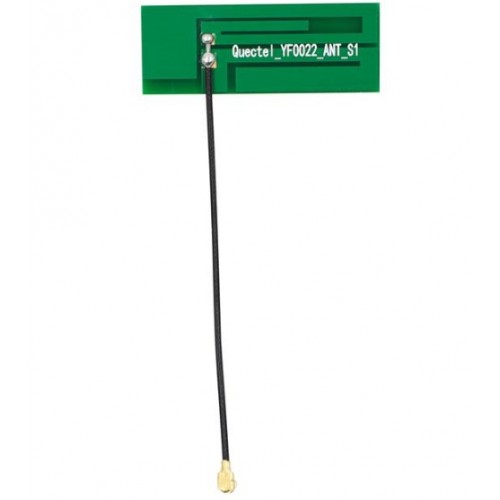

Quectel LTE 4G Full-Band PCB Antenna 700~2690MHz 75mm Cable YF0022AA


Write a review | 0 reviews

  • Stock: 12

    Availability: InStock priceValidUntil: 2026-09-17

  • SKU: 7876 | DAH469

Availability: InStock priceValidUntil: 2026-09-17

  • Rs. 141.60 (inc GST)
    Rs.120.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Quectel LTE 4G Full-Band PCB Antenna 700~2690MHz 75mm Cable YF0022AA

Quectel LTE 4G Full-Band PCB Antenna 700~2690MHz 75mm Cable YF0022AA

The YF0022AA is a compact, high-performance antenna that supports multiple frequency bands, including 4G LTE, 3G, 2G, and LPWA. Its design ensures high efficiency and gain, facilitating stable and reliable data transmission even when influenced by a device's internal structure. The antenna is ground plane independent and is designed to be mounted directly to the underside of either a plastic or non-metallic enclosure.

DNA solutions, Nashik has various types of Antenna. Check out our complete collection of Antenna.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Quectel LTE 4G Full-Band PCB Antenna 700~2690MHz 75mm Cable YF0022AA

  • Wide Frequency Coverage: Operates over 700–960 MHz, 1710–2170 MHz, and 2300–2690 MHz
  • High Efficiency: Ensures effective signal transmission and reception across supported bands
  • Compact Design: Dimensions of 40 mm × 15 mm × 2.0 mm, suitable for space-constrained applications
  • Ease of Integration: Comes with a 75 mm cable and RF connector, facilitating straightforward integration into various devices
  • Adhesive Mounting: Features an adhesive backing for easy installation on non-metallic surfaces

Specifications of Quectel LTE 4G Full-Band PCB Antenna 700~2690MHz 75mm Cable YF0022AA

  • Frequency Ranges: 700–960 MHz, 1710–2170 MHz & 2300–2690 MHz
  • Input Impedance: 50 Ω
  • VSWR: ≤ 3.0
  • Gain: Up to 5.34 dBi
  • Polarization Type: Linear
  • Connector Type: RF 1
  • Operating Temperature: -40 °C to +85 °C

Applications of Quectel LTE 4G Full-Band PCB Antenna 700~2690MHz 75mm Cable YF0022AA

  • 4G LTE Devices
  • 3G/2G Communication
  • LPWA (Low Power Wide Area) Applications
  • Embedded Systems

    Package Includes

          1 x Quectel LTE 4G Full-Band PCB Antenna 700~2690MHz 75mm Cable YF0022AA

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
