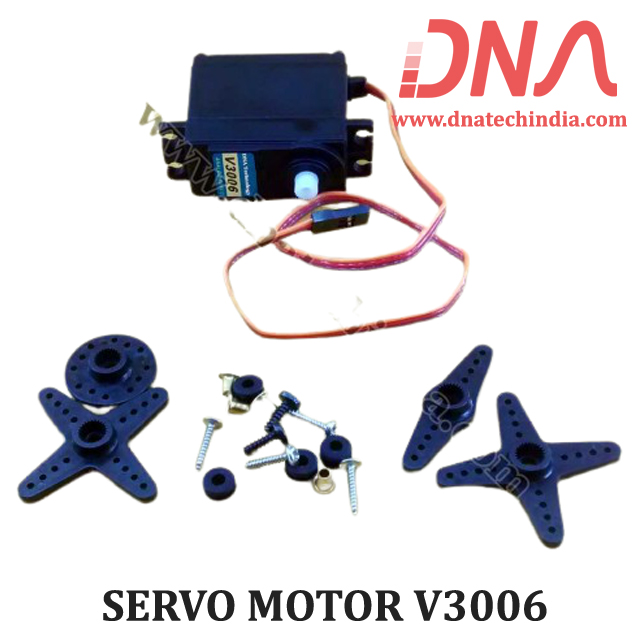

Servo Motor V3006

A servomotor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration.

It consists of a suitable motor coupled to a sensor for position feedback. It also requires a relatively sophisticated controller, often a dedicated module designed specifically for use with servomotors.

Servomotors are not a specific class of motor although the term servomotor is often used to refer to a motor suitable for use in a closed-loop control system. This is a High Torque Plastic Geared Servo Motor V3006.

Features of V3006

• Operating Voltage : 4.8VDC- 6.0VDC

• Operating Speed : 0.18sec/60degree (4.8V),

                                            0.16sec/60degree (6.0V)

• Stall Torque : 6.0kg-cm (4.8V),

                                  7.1kg-cm (6.0V)

• Temperature Range : -20°C ~60°C

• Dead Band Width : 4ms

• Dimension : 41.3X20.3X38.7mm

• Gear : Plastic

• Type : Analog

• Weight : 40g

• Cable in Length : 25cm

Applications of Servo Motor

• Robotics,

• CNC machinery,

• Automated manufacturing.
