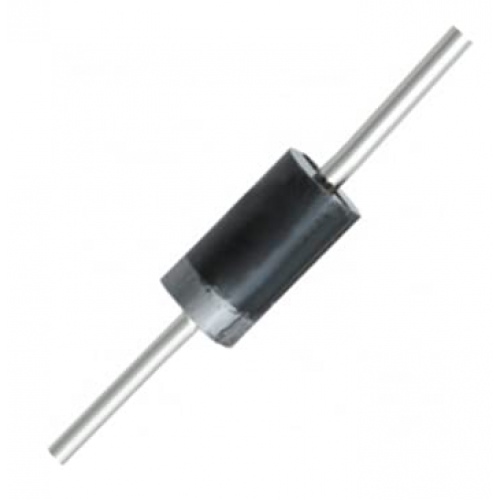

Product Images are shown for illustrative purposes only and may differ from actual product.

SR5200 Schottky DIODE


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-11-02

  • SKU: 9766 | DAI502

Availability: NotInStock priceValidUntil: 2026-11-02

  • Rs. 7.43 (inc GST)
    Rs.6.30 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SR5200 Schottky Barrier Rectifier Diode

SR5200 Schottky Diode for 5 A forward current, 200 V reverse voltage, low forward voltage drop.

The SR5200 Schottky Barrier Rectifier Diode is engineered for high efficiency with a low forward voltage drop of about 0.55 V. This diode handles a forward current of 5 A and a reverse voltage of 200 V, making it suitable for various applications. Its fast switching performance ensures reliable operation in high-frequency circuits. The SR5200 Schottky Barrier Rectifier Diode is essential for power supply output rectification, freewheeling, and reverse polarity protection circuits.

With a surge current capability of 150 A, the SR5200 Schottky Barrier Rectifier Diode is designed to minimize power loss and heat generation. This feature enhances the overall reliability of your electronic projects, especially in battery chargers and DC-DC converters. Explore the advantages of using this diode in your designs to improve efficiency and performance.

For Indian customers, the SR5200 Schottky Barrier Rectifier Diode is readily available through DNA solutions. You can visit our store in Nashik or order online for doorstep delivery anywhere in India.

Explore the reliability of Diodes & Transistors at DNA solutions. The SR5200 Schottky Barrier Rectifier Diode is perfect for your electronic needs. Check other "Diodes & Transistors" that we have in stock.

If you're looking for more electronic components, DNA can help. We can import parts not currently in stock, and we support retail and bulk orders. Check out our range of items like DC to DC Converter Modules, Transistors, Crystals, Resistors, Power Supplies, and Microcontrollers. Contact Us.

Features of SR5200 Schottky Barrier Rectifier Diode

  • Low forward voltage drop
  • High surge current capability
  • Fast recovery time
  • Low power loss
  • High efficiency
  • High reliability

Specification of SR5200 Schottky Barrier Rectifier Diode

  • Type: Schottky barrier rectifier diode
  • Reverse voltage: 200 V
  • Forward current: 5 A
  • Surge current: 150 A
  • Forward voltage drop: ~0.55–0.75 V at 5 A

Applications of SR5200 Schottky Barrier Rectifier Diode

  • Freewheeling diodes in motor drives
  • DC-DC converters
  • Reverse polarity protection
  • Battery chargers

Related Links for SR5200 Schottky Barrier Rectifier Diode

Package Includes

  • 1 X SR5200 Schottky Barrier Rectifier Diode
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
