Product Images are shown for illustrative purposes only and may differ from actual product.

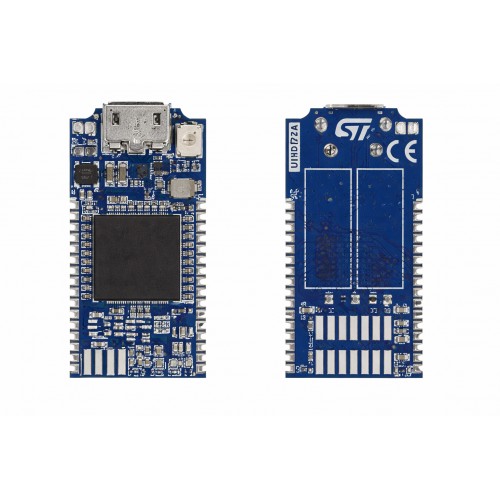

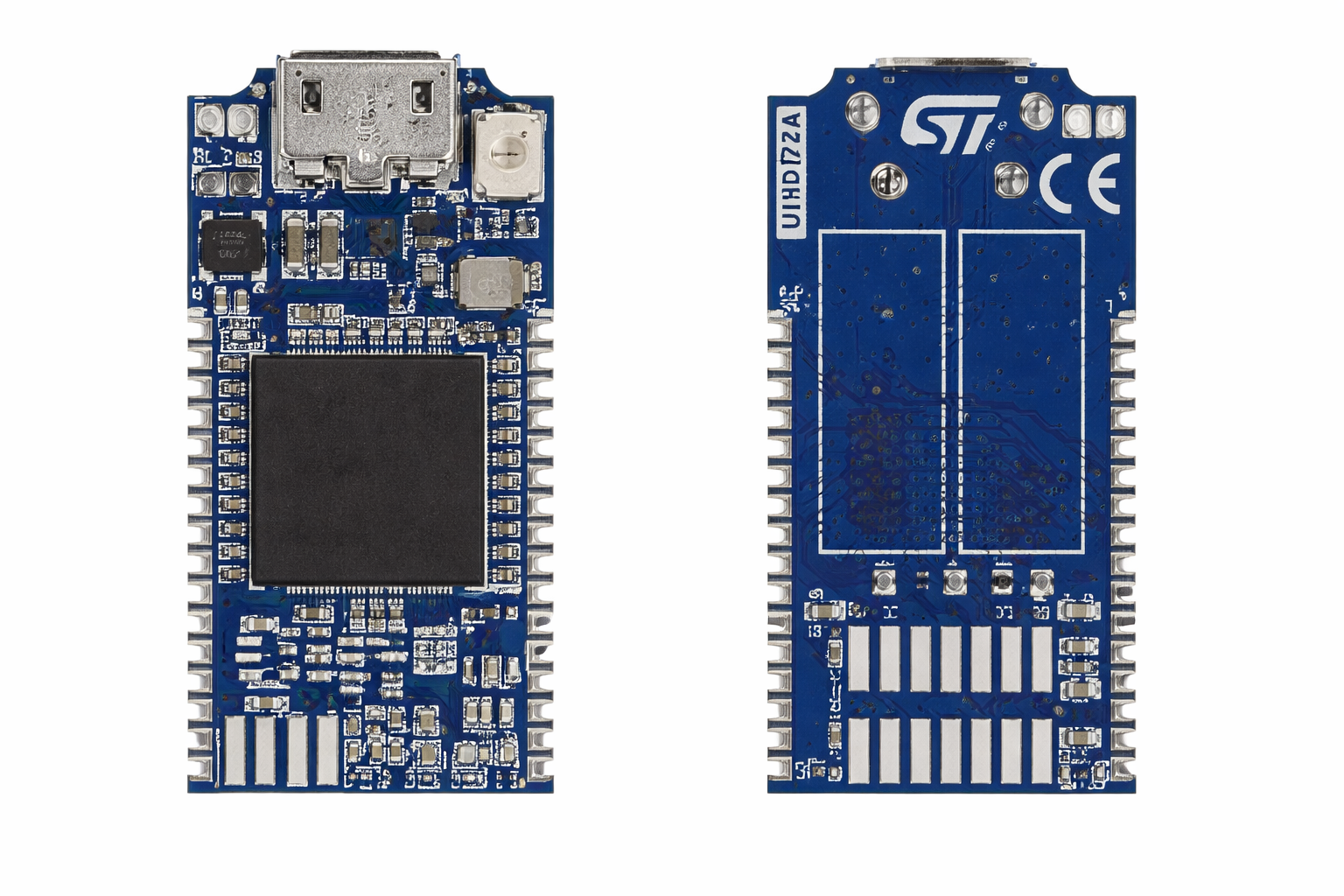

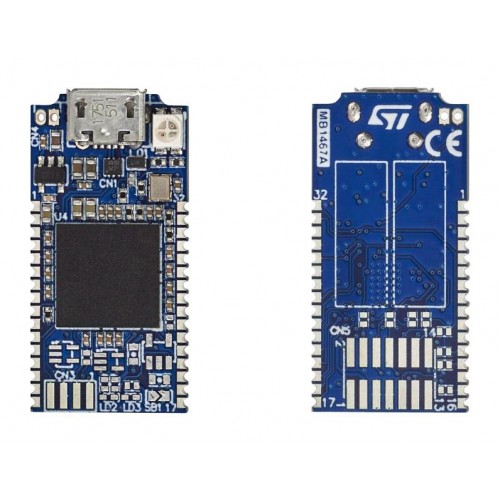

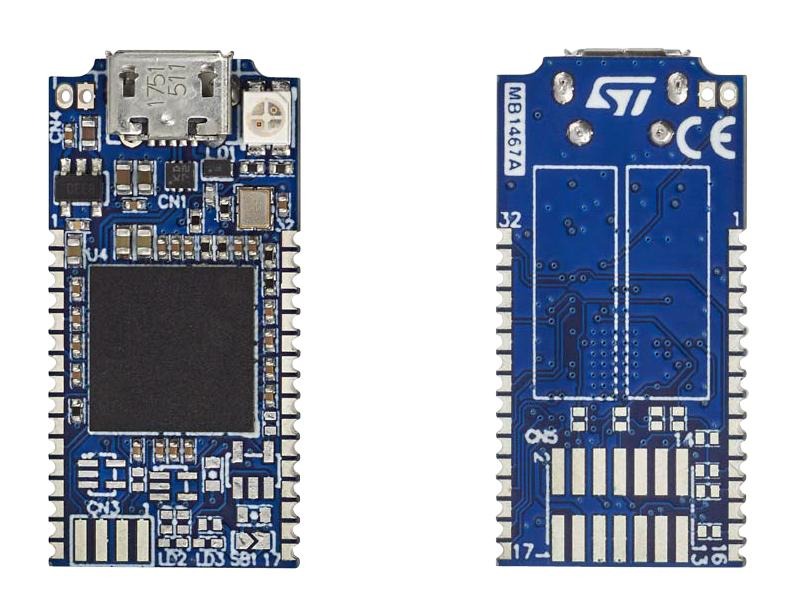

STMicroelectronics STLINK-V3MODS Modular In-Circuit Debugger and Programmer

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: ST Microelectronics
  • SKU: 10806 | DAK035

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 1,628.40 (inc GST)
    Rs.1,380.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

STMicroelectronics STLINK-V3MODS Modular In-Circuit Debugger and Programmer

STLINK-V3MODS modular STM32 debugger and programmer with JTAG/SWD, virtual COM port and USB 2.0 high-speed compatible interface.

The STMicroelectronics STLINK-V3MODS is a modular in-circuit debugger and programmer for STM32 microcontrollers. It supports JTAG and SWD debugging and provides a virtual COM port for communication with a target through UART.
Its USB bridge links a host to SPI, UART, I2C, CAN and GPIO interfaces. This range of connections helps with debugging and board communication, while drag-and-drop Flash programming and direct firmware update support common programming tasks. The module is self-powered through a USB Micro-B connector and includes LEDs for power and communication.
Use this STM32 debugger and programmer to work on microcontrollers fitted to an application board or to program a target through its bootloader. Its modular design also supports direct PCB implementation.
DNA supplies STMicroelectronics programming tools for electronics development and embedded system work. Explore our range of Programmers to find equipment for your projects. Check other Programmers that we have in stock
Looking for a part that is not listed? Contact DNA for import support and retail or bulk orders. Ask us about Development Modules, HMI Displays, Connectors, Crystals, Nextion Displays and IGBTs. Contact Us

Features of STMicroelectronics STLINK-V3MODS Modular In-Circuit Debugger and Programmer

  • Supports JTAG and SWD debugging, including Serial Wire Viewer
  • Virtual COM port enables host communication with a target through UART
  • USB bridge supports SPI, UART, I2C, CAN and GPIO interfaces
  • Drag-and-drop Flash programming and direct firmware update support
  • Self-powered through a USB Micro-B connector
  • Two-color LEDs indicate communication and power

Specifications of STMicroelectronics STLINK-V3MODS Modular In-Circuit Debugger and Programmer

  • Application voltage: 3 V to 3.6 V for JTAG/SWD, UART and USB bridge interfaces
  • Input tolerance: 5 V tolerant inputs for JTAG/SWD, UART and USB bridge interfaces
  • Virtual COM port frequency: Up to 15 MHz
  • USB interface: USB 2.0 high-speed compatible
  • Embedded microcontroller: STM32 32-bit microcontroller based on an Arm Cortex-M processor
  • Module dimensions: Approximately 15 mm × 30 mm
  • PCB connection: 2 × 16-pin, 1.27 mm edge castellated vias
  • Connector: USB Micro-B

Applications of STMicroelectronics STLINK-V3MODS Modular In-Circuit Debugger and Programmer

  • Debugging and programming STM32 microcontrollers on an application board
  • Field programming through a bootloader

Related Links for STMicroelectronics STLINK-V3MODS Modular In-Circuit Debugger and Programmer

Package Includes

  • 1 X STMicroelectronics STLINK-V3MODS Modular In-Circuit Debugger and Programmer
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
