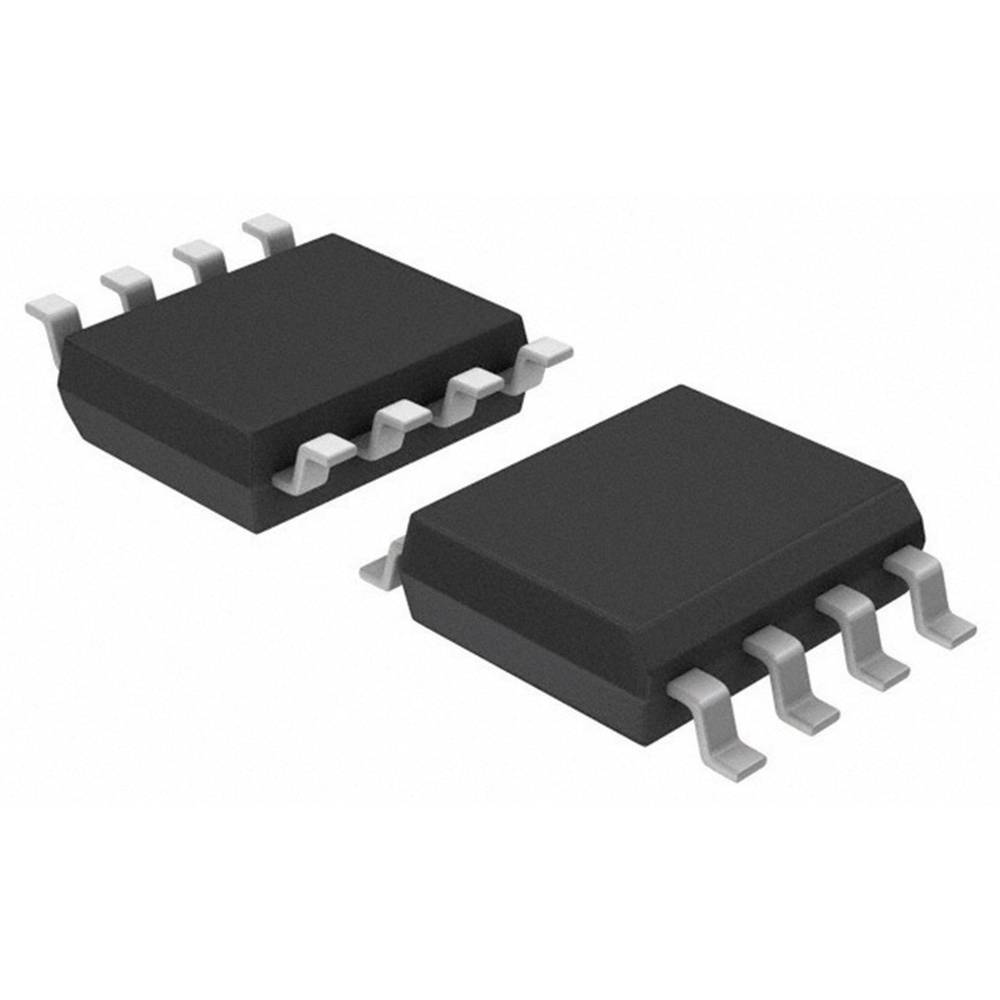

TC7662B SMD IC

TC7662 BOEA Charge Pump DC to DC Voltage Converter

The TC7662B is a pin-compatible upgrade to the Industry standard TC7660 charge pump voltage converter. It converts a +1.5V to +15V input to a corresponding – 1.5 to – 15V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and EMI. The on-board oscillator operates at a nominal frequency of 10kHz. Frequency is increased to 35kHz when pin 1 is connected

to V+, allowing the use of smaller external capacitors. Operation below 10kHz (for lower supply current applications) is also possible by connecting an external capacitor from OSC to ground (with pin 1 open). The TC7662B is available in both 8-pin DIP and 8-pin small outline (SO) packages in commercial and extended temperature ranges

Features of TC7662B SMD IC

• Wide Operating Voltage Range : 1.5V to 15V

• Boost Pin (Pin 1) for Higher Switching Frequency

• High Power Efficiency is 96%

• Easy to Use – Requires Only 2 External Non-Critical Passive Components

• Improved Direct Replacement for Industry Standard ICL7660 and Other Second Source Devices

Applications of TC7662B SMD IC

• Simple Conversion of +5V to ±5V Supplies

• Voltage Multiplication VOUT = ±nVIN

• Negative Supplies for Data Acquisition Systems and Instrumentation

• RS232 Power Supplies

• Supply Splitter, VOUT = ±VS/2
