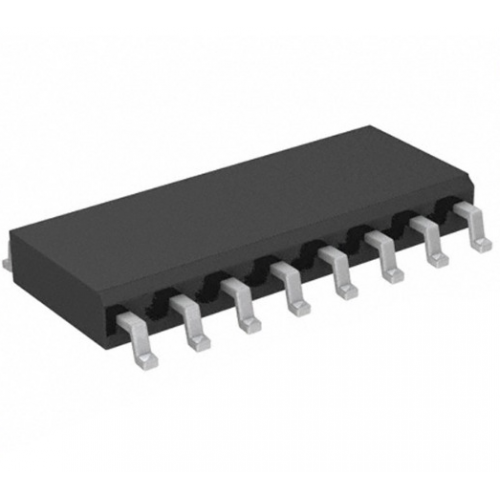

TEA2017AAT/2 NXP PFC Controller IC for AC-DC Converters

TEA2017AAT/2 PFC Controller IC for low-THD AC-DC converters with high efficiency and compact SO16 package.

The TEA2017AAT/2 NXP PFC Controller is a state-of-the-art power factor correction IC designed to enhance the performance of AC-DC power supplies. With its ability to operate in Continuous Conduction Mode (CCM), it ensures low total harmonic distortion (THD) and high power factor, making it ideal for applications such as LED lighting drivers and industrial SMPS. The TEA2017AAT/2 is suitable for universal AC mains with a wide input voltage range, ensuring versatile usage in various electronic designs.

Engineered for efficiency, the TEA2017AAT/2 NXP PFC Controller incorporates vital protection features, including brown-in/brown-out protection and safeguards against over-voltage, over-current, and over-temperature scenarios. Its compact SO16 package allows for easy PCB layout, reducing design complexity while enhancing overall system performance. Leveraging a programmable operating frequency of up to 200 kHz, this IC is essential for modern power supply designs in consumer electronics and telecom applications.

Overall, the TEA2017AAT/2 is not just a PFC controller; it is an intelligent solution that optimizes performance and reliability in electronic systems. Whether you’re developing power supplies for desktops or servers, this IC stands out as a robust choice for ensuring high efficiency and low power consumption in your designs.

Features of TEA2017AAT/2 NXP PFC Controller

• Continuous Conduction Mode (CCM) control
• Wide input voltage range
• Low total harmonic distortion (THD)
• Brown-in/brown-out protection
• Over-voltage and over-current protection
• High efficiency
• Compact SO16 package

Specification of TEA2017AAT/2 NXP PFC Controller

• Input Supply Voltage (VCC): 11-30 V
• Output Gate Drive Current: up to ±500 mA
• Operating Frequency: up to 200 kHz
• Start-up Current: < 50 µA
• Operating Temperature: -40 °C to +150 °C
• Package: SO16

Applications of TEA2017AAT/2 NXP PFC Controller

• AC-DC power supplies
• Industrial SMPS
• Consumer electronics
• LED lighting drivers
• Telecom power systems

Related Link

• Product Name Datasheet

• More Details

Package Includes

• 1 X TEA2017AAT/2 NXP PFC Controller IC
