Product Images are shown for illustrative purposes only and may differ from actual product.

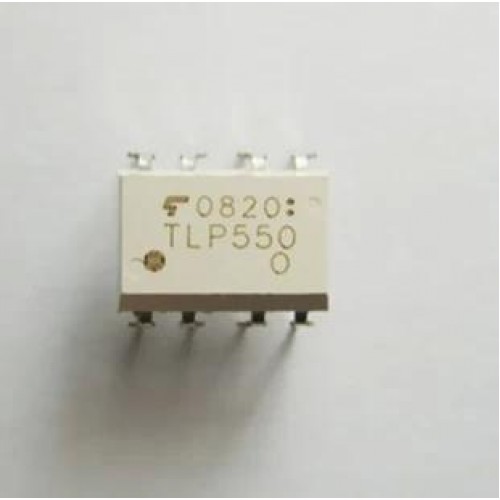

TLP550 Optocoupler

Write a review | 1 reviews

Stock: 15
Availability: InStock priceValidUntil: 2026-11-03
Brand: Generic
SKU: 1580 | DAA439

Rs. 112.10 (inc GST)
Rs.95.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

TLP550 Optocoupler

TLP550 constructs a high emitting diode and a one chip photo diode−transistor.

TLP550 has no base connection, and is suitable for application at noisy environmental condition.

Features of TLP550

Isolation voltage : 2500 Vrms (min)
Switching speed : tpHL, tpLH = 0.5μs (typ.)(RL=1.9 kΩ)
TTL compatible
UL recognized : UL1577, file No. E67349

Application of TLP550

Digital Logic Isolation
Line Receiver Feedback Control
Power Supply Control
Switching Power Supply
Transistor Inverter

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
